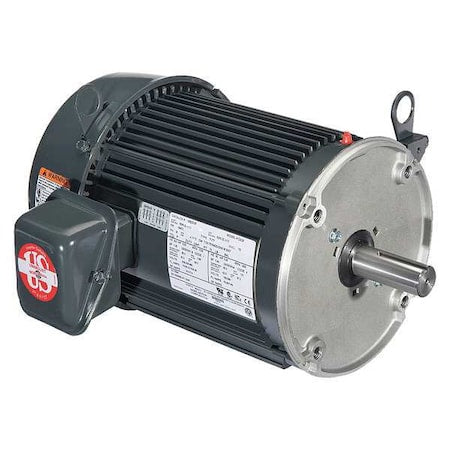

Nidec U7P2DCR General Purpose Motor 7.5 HP 3-Phase 208-230/460V 213TC Frame

Product Description

The Nidec U7P2DCR is a general purpose motor designed for various industrial applications. This 7.5 HP, three-phase motor runs at 1800 RPM and operates on 208-230/460 volts. It is built with a 213TC frame and features a totally enclosed fan-cooled design.

• 7.5 HP, three-phase motor
• Runs at 1800 RPM
• Operates on 208-230/460 volts

Product Highlights

Excellent for use in fans, blowers, compressors, and pumps, the Nidec U7P2DCR delivers reliable power and efficiency with its robust construction and high-quality components.

Product Information

Standard Information

• Brand: Nidec
• MPN: U7P2DCR

Technical Specifications

• Horsepower: 7.5 HP
• RPM: 1800
• Voltage: 208-230/460V
• Frame: 213TC
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Phase: Three
• Amperage: 20-18.2/9.1
• Efficiency: 91.7%
• Service Factor: 1.25
• Insulation Class: F
• Mounting: C-Face, Footless
• Material: Aluminum
• Bearings: Ball / Ball
• Shaft Rotation: CW/CCW
• Length: 18.6 inches
• Weight: 110 lbs
