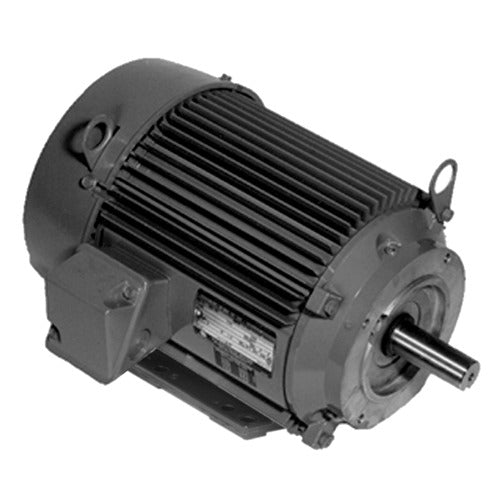

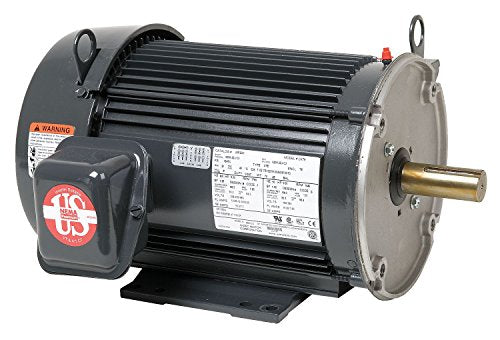

U.S. Motors U7P2DC TEFC Motor 7.5 HP 3-Phase 1765 RPM

Product Description

The U.S. Motors U7P2DC TEFC Motor is a general-purpose motor designed with 7.5 horsepower. This three-phase motor operates at 1765 RPM, making it suitable for a variety of industrial applications. It is built with a NEMA 213TC frame and has aluminum construction.

• 7.5 horsepower TEFC motor
• Three-phase, 1765 RPM
• NEMA 213TC frame

Product Highlights

This motor is designed for industrial equipment such as fans, blowers, compressors, and pumps. It is highly efficient and durable with a 91.7% efficiency rating.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U7P2DC

Technical Specifications

• Horsepower: 7 1/2
• RPM: 1800
• Phase: Three
• Voltage: 208-230/460V
• Amperage: 20-18.2/9.1
• Frame: 213TC
• Efficiency: 91.70%
• Frequency: 60/50 Hz
• Insulation Class: F
• Service Factor: 1.25
• Enclosure: Totally Enclosed Fan-Cooled
• Mounting Type: C-Face / Footed
• Material: Aluminum
• Bearings: Ball
• Max. Ambient Temp.: 40 Degrees C
• Shaft Diameter: 1 3/8 in
• Shaft Length: 3 3/8 in
• Nominal Efficiency: 91.7 %
• Motor Shaft Design: Keyed
• Country of Origin: Mexico
• Manufacturers Warranty Length: 2 yr
