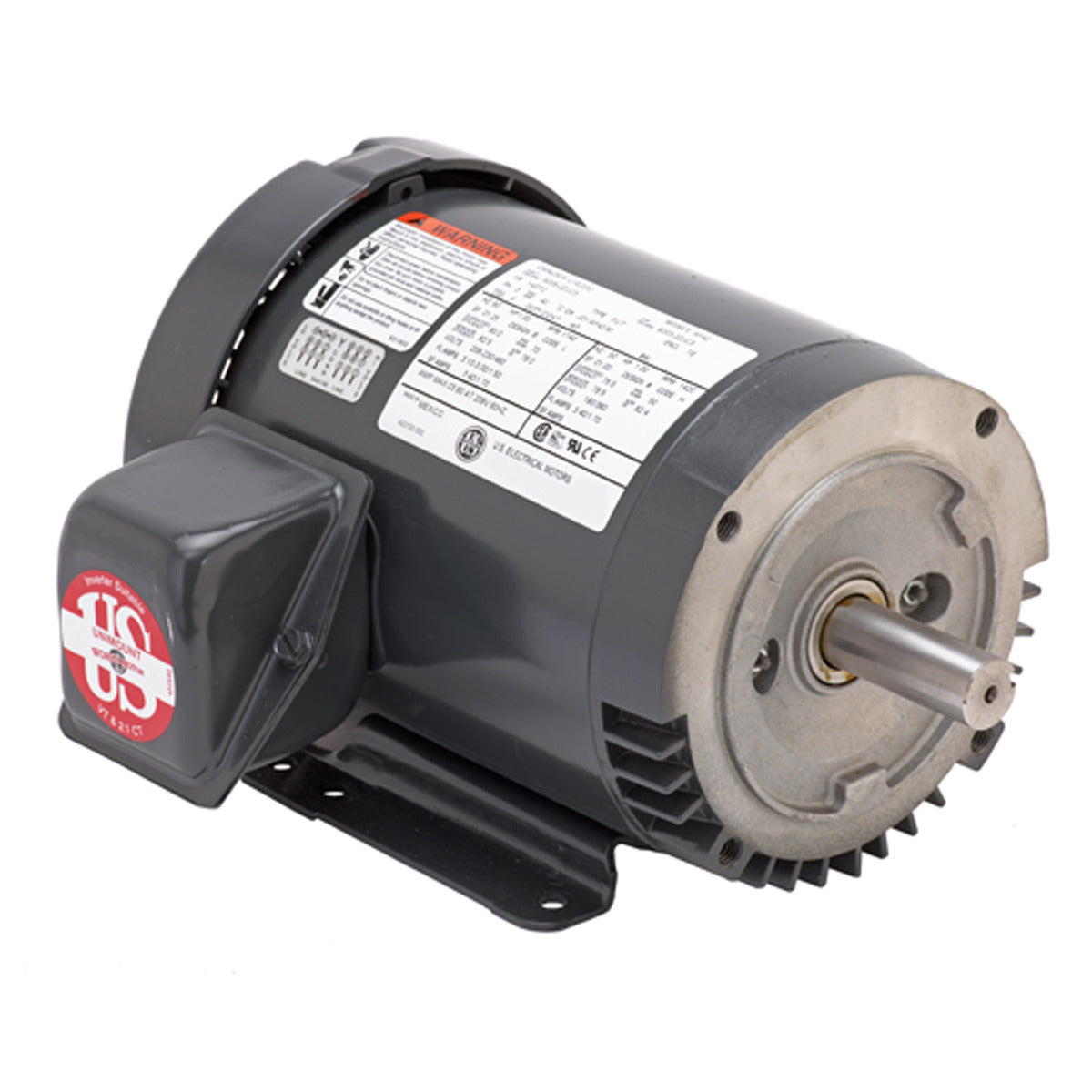

Nidec-US Motors U7P2D | 7.5HP, 1765RPM, TEFC, 213T, TRI/3P

Product Description

The U7P2D motor from Nidec-US Motors is designed for heavy-duty industrial applications. This motor is rated at seven and a half horsepower and operates at a speed of one thousand seven hundred sixty-five revolutions per minute. It features a totally enclosed fan-cooled (TEFC) design that protects the internal components, making it suitable for use in challenging environments. The motor's frame size is 213T, ensuring structural firmness during operation. It uses a three-phase power configuration, which allows for efficient energy consumption and reliable performance.

• Rated at 7.5HP power output
• Operates at 1765 RPM for optimal performance
• TEFC design enhances durability and longevity

Product Highlights

This motor is suitable for various industrial machinery, including fans, blowers, compressors, and pumps. The three-phase power ensures consistent electrical input, making it ideal for commercial and industrial setups that require robust and reliable motors.

Product Information

Standard Information

• Brand: Nidec-US Motors
• MPN: U7P2D

Technical Specifications

• Horsepower: 7.5 HP
• RPM: 1765
• Enclosure Type: TEFC
• Frame Size: 213T
• Voltage: 208-230/460
• Amperage: 20-18.2/9.1
• Phase: Three Phase
• Bearings Type: Ball / Ball
