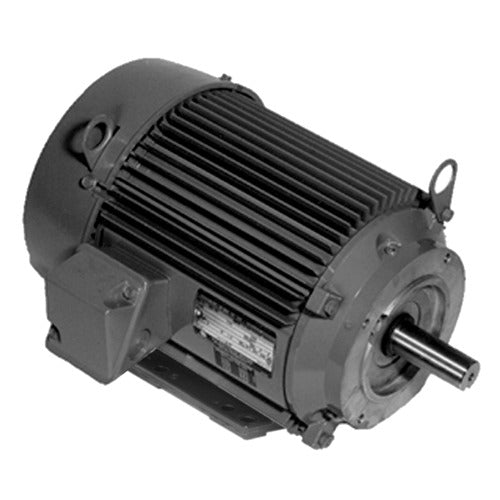

US-Nidec U5P1DCR General Purpose Motor 5 HP 208-230/460V 184TC Frame

Product Description

The US-Nidec U5P1DCR is a general-purpose motor designed for a variety of industrial applications. This motor is suitable for use in equipment like fans, blowers, compressors, pumps, and other direct connected equipment. With its robust construction and reliable performance, you can depend on this motor to meet your industrial needs.

• 5 horsepower
• 208-230/460 volts
• RPM 3600

Product Highlights

This motor comes with an aluminum body and ball bearings, ensuring durability and efficiency. It operates with a totally enclosed fan-cooled (TEFC) enclosure and is designed for use in three-phase electrical systems. The motor is inverter-rated, making it suitable for applications requiring variable speed control.

Product Information

Standard Information

• Item: General Purpose Motor
• Brand: US-Nidec
• Power: 5 HP
• MPN: U5P1DCR

Technical Specifications

• Voltage: 208-230/460 V AC
• Amperage: 13.4-12.2/6.1
• Frame: 184TC
• RPM: 3600
• Material: Aluminum
• Enclosure: TEFC
• Phase: Three
• Rotation: REV
• Bearings Type: Ball
• Bearings Size: 6205-2Z-J/C3 / 6206-2Z-J/C3
• Mounting: C-Face / Footless
• Shaft Type: Single
• Efficiency: 88.50%
• Service Factor: 1.15
• Insulation Class: F
• Country of Origin: Mexico
