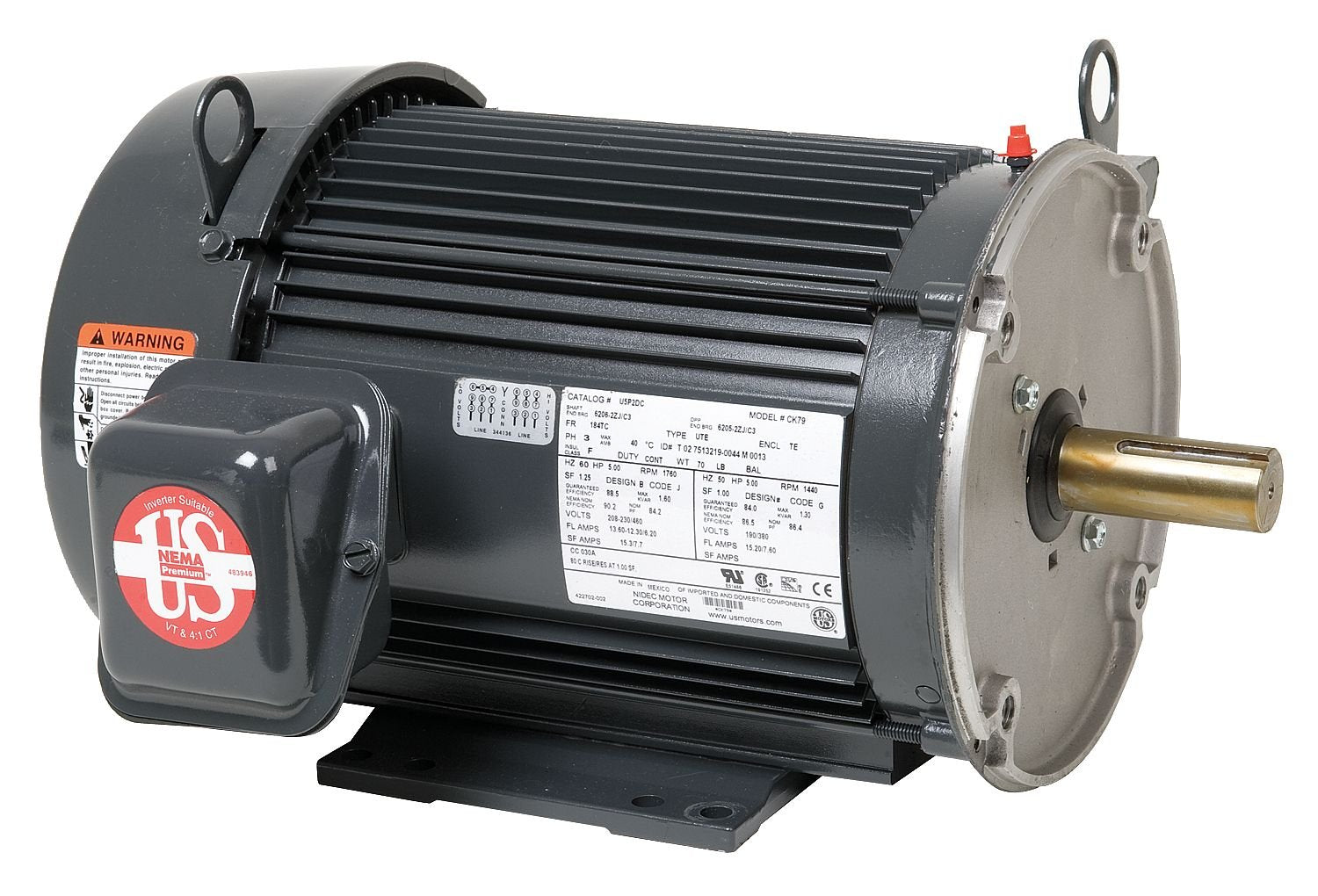

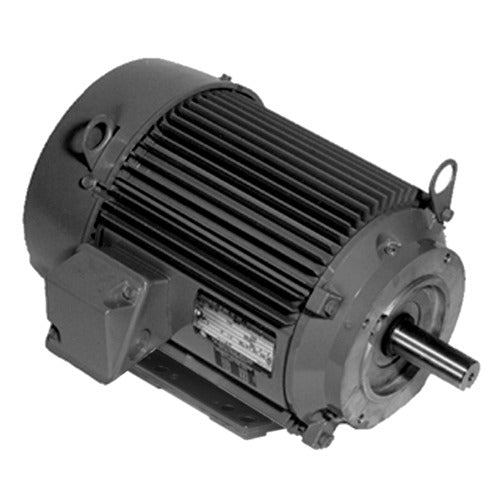

US Motors U3P2DC General Purpose Motor 3 HP 3-Phase 1800 RPM 182TC Frame 208-230/460V AC

Product Description

The US Motors U3P2DC is a general-purpose motor suitable for various industrial applications. It operates at 3 horsepower and provides reliable three-phase power. With an RPM of 1800 and a voltage range of 208-230/460V AC, this motor is designed for efficiency and performance in demanding environments.

• 3 horsepower
• Three-phase power
• Totally enclosed fan-cooled

Product Highlights

Designed for general industrial equipment, this motor is commonly used in fans, blowers, compressors, pumps, and direct connected equipment. The fully enclosed design ensures durability and protection in harsh environments.

Product Information

Standard Information

• Brand: US Motors
• MPN: U3P2DC

Technical Specifications

• Horsepower: 3
• RPM: 1800
• Voltage: 208-230/460V AC
• Frame: 182TC
• Phase: Three
• Enclosure: Totally Enclosed Fan-Cooled
• Efficiency: 89.50%
• Service Factor: 1.25
• Insulation Class: F
• Material: Aluminum
• Bearings: Ball
• Shaft Diameter: 1 1/8 inches
• Shaft Length: 2 3/4 inches
• Orientation: Horizontal or Vertical Shaft Down
• Country of Origin: Mexico
