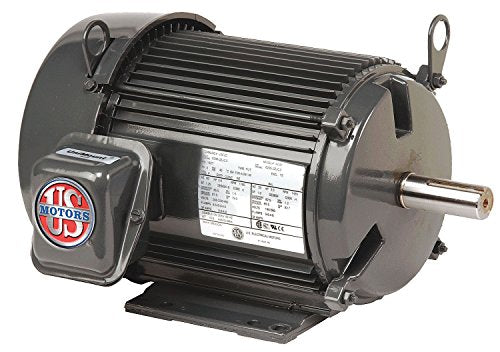

US Motors U3P1D General Purpose Motor 3 HP 3600 RPM 208-230/460V

Product Description

The US Motors U3P1D General Purpose Motor is a versatile and reliable 3-phase motor designed for various industrial applications. With a power of 3 HP and a nameplate RPM of 3600, it operates efficiently and effectively.

• 3 HP power output
• Rotation: CW/CCW
• Totally Enclosed Fan-Cooled design

Product Highlights

This motor is ideal for use in fans, blowers, compressors, pumps, and other direct connected equipment. It maintains consistent performance under continuous duty cycles.

Product Information

Standard Information

• Brand: US Motors
• MPN: U3P1D
• Category: 3-Phase AC Motors
• Manufacturer: US Motors
• UPC: 786382044442
• Weight: 60 lbs

Technical Specifications

• Voltage: 208-230/460V AC
• Full Load Amps: 8.4-7.8/3.9
• Frame: 182T
• Ins. Class: F
• Nominal Efficiency: 87.5%
• Mounting Type: Rigid Base
• Service Factor: 1.25
• Motor Bearings: Ball
• Overall Length: 16 1/4 inches
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Design: Keyed
• Motor Thermal Protection: None
• Standards: CE, CSA, UL
• Country of Origin: Mexico
• Green Certification or Other Recognition: NEMA Premium Rated
