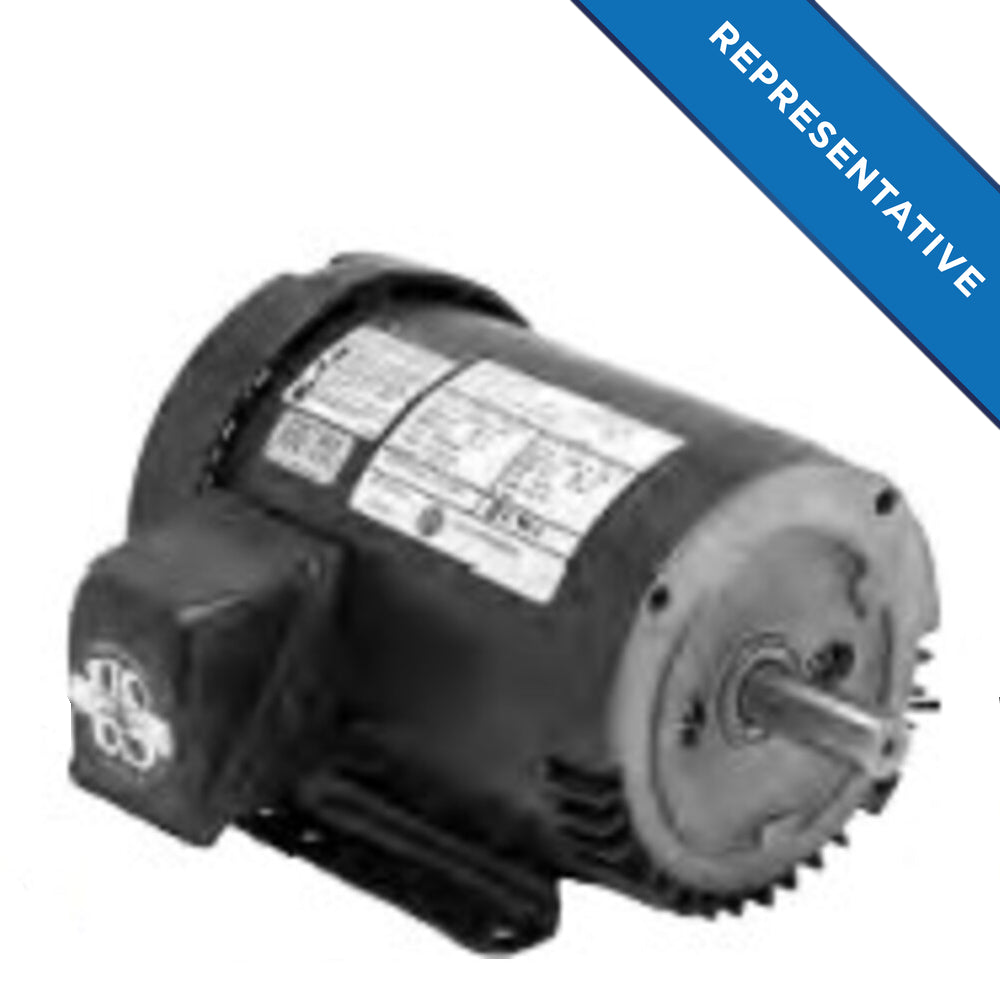

US-Nidec U34S1AC General Purpose Motor 3/4 HP 56 Frame 3600 RPM 208-230/460V

Product Description

US-Nidec's U34S1AC General Purpose Motor is a reliable solution for various industrial needs. This motor is perfect for powering equipment like fans, blowers, compressors, pumps, and more.

• Efficient performance with a 3/4 HP output
• Operates at a speed of 3600 RPM
• Compatible with 208-230/460V power supply

Product Highlights

The US-Nidec U34S1AC General Purpose Motor is designed for durability and efficiency. It provides consistent power for various industrial applications, ensuring reliability and performance in every use.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: U34S1AC
• Product Type: General Purpose Motor
• Power: 3/4 HP
• Speed: 3600 RPM
• Voltage: 208-230/460V
• Frame: 56

Technical Specifications

• Amperage: 2.4-2.2/1.1
• Enclosure: TEFC
• Phase: Three
• Bearing Type: Ball
• Bearing Size: 6203-2Z-J/C3
• Mounting: C-Face / Footed
• Rotation: REV
• Material: Rolled Steel
• Service Factor: 1.25
• Efficiency: 75.50%
• Shaft Type: Single
• Maximum Ambient Temperature: 40 Degrees C
• Weight: 26 pounds
• Overall Length: 10.8 inches
• Shaft Diameter: 5/8 inches
• Shaft Length: 2 inches
• Insulation Class: F
• Frame Suffix: C
• Voltage Compatibility: 208-230/460V
• Thermal Protection: None
• Mounting Position: Horizontal
• Warranty: 2 years Manufacturer Warranty
