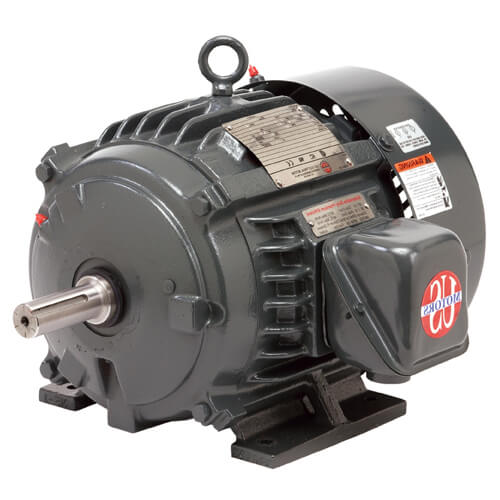

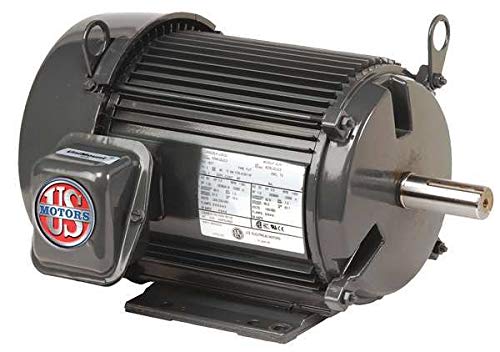

US Motors U30P2D General Purpose Motor 30 HP 1800 RPM 208-230/460V

Product Description

The US Motors U30P2D General Purpose Motor is designed for industrial applications. It offers a reliable solution for various equipment including fans, blowers, compressors, and pumps.

• 30 HP power
• 1800 RPM speed
• 208-230/460V voltage

Product Highlights

This motor ensures efficient performance with its NEMA Premium Rated efficiency and totally enclosed fan-cooled design. It is suitable for both horizontal and vertical shaft down mounting positions.

Product Information

Standard Information

• Brand: US Motors
• Model: U30P2D

Technical Specifications

• HP: 30
• RPM: 1800
• Voltage: 208-230/460V
• Phase: 3
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame: 286T
• Insulation Class: F
• Service Factor: 1.25
• Full Load Amps: 70.0/35.0
• Material: Cast Aluminum
• Max. Ambient Temp.: 40 Degrees C
• Mounting Type: Rigid Base
• Length: 27 5/16 inches
• Shaft Diameter: 1 7/8 inches
• Shaft Length: 4 5/8 inches
• Nominal Efficiency: 93.6%
• Standards: UL, CSA, CE
