US-Nidec U20P2D General Purpose Motor 20 HP 256T Frame

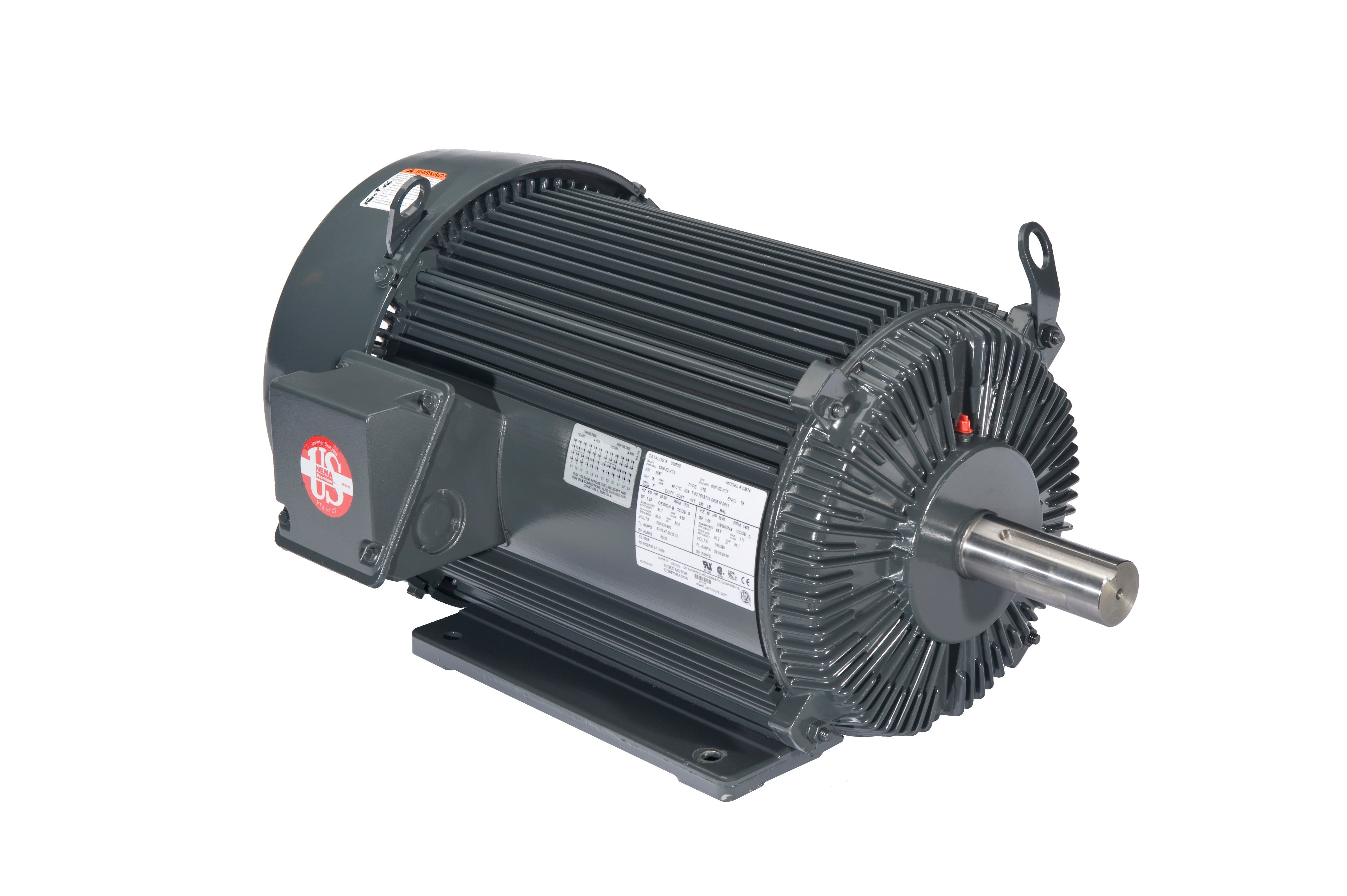

US-Nidec U20P2D General Purpose Motor

The US-Nidec U20P2D is a reliable general-purpose motor suited for a variety of industrial applications. Engineered with NEMA Premium Efficiency, it ensures optimal performance for demanding tasks.

• 20 HP power rating
• 1800 RPM speed
• 208-230/460 voltage

Product Highlights

This motor features a robust design suitable for fans, blowers, compressors, pumps, and direct connected equipment. It offers high efficiency and reliability in diverse applications.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: U20P2D
• Type: Motor > General Purpose Motor
• Applications: General industrial equipment
• Country of Origin: Mexico

Technical Specifications

• HP: 20
• RPM: 1800
• Voltage: 208-230/460
• Amperage: 53-47/23.5
• Frame: 256T
• Enclosure: TEFC
• Phase: Three
• Electrical Type: Three Phase
• Rotation: REV
• Mounting: Horizontal / Footed
• Shaft: Single
• Bearings Type: Ball / Ball
• Bearings SE Size: 6207-2Z-J/C3
• Bearings OSE Size: 6309-2Z-J/C3
• Material: Aluminum
• Insulation Class: F
• Service Factor: 1.25
• Efficiency: 93%
• Shaft Dia.: 1 5/8 in
• Shaft Length: 4 in
• Overall Length: 26 1/8 in
• Length Less Shaft: 21 5/8 in
• Motor Mounting Type: Rigid Base
• Ambient Temperature: 40 Degrees C
