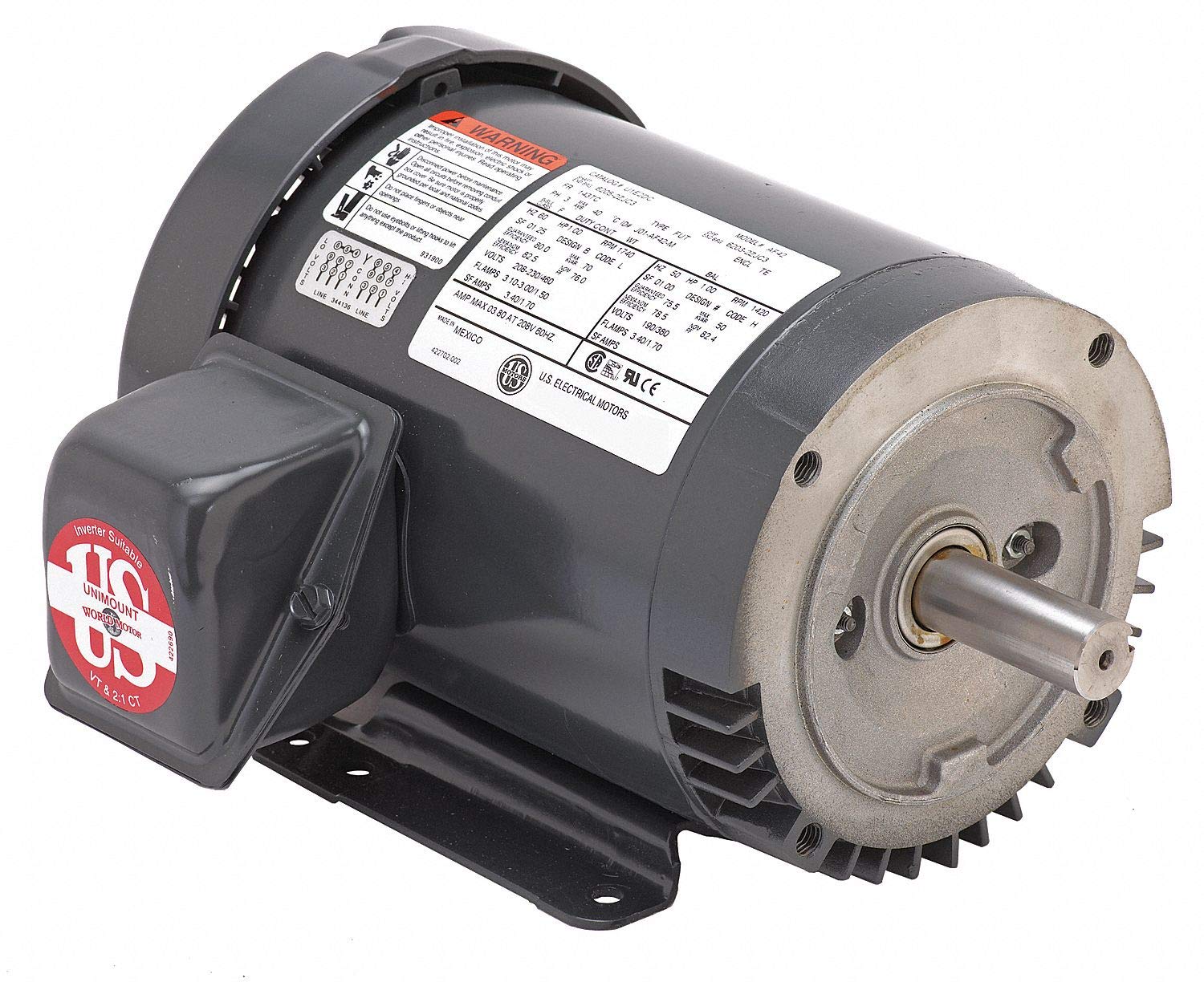

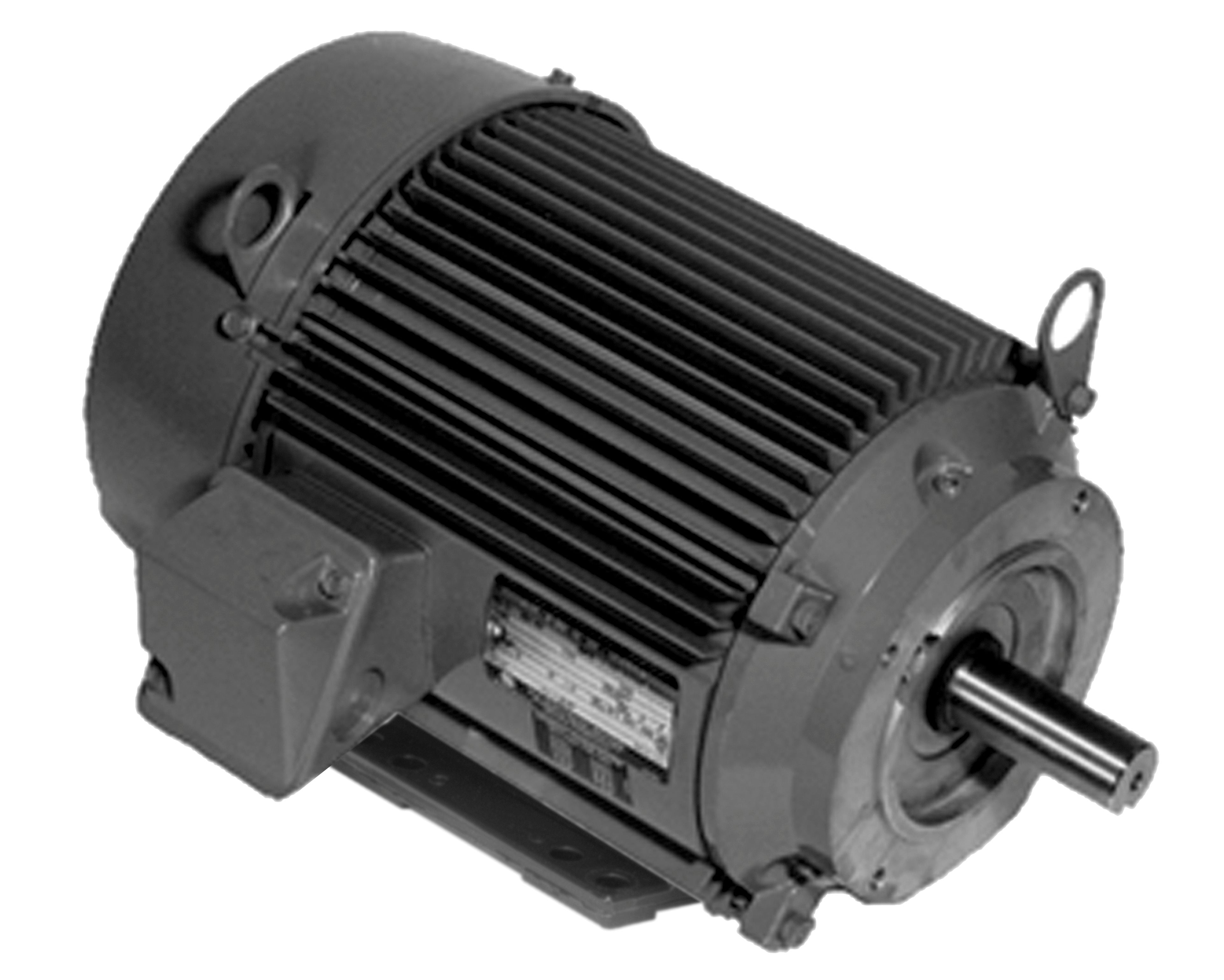

US Motors U1P2DC General Purpose Motor 1 HP 3-Phase 143TC Frame

Product Description

The US Motors U1P2DC is a general-purpose motor designed for industrial applications. It offers a robust 1 HP power, operates on three-phase, and is built within the 143TC frame. This motor is suitable for various uses, including fans, compressors, and pumps.

• 1 HP, 3-Phase Motor
• 143TC Frame
• 230/460V AC Voltage

Product Highlights

This motor provides reliable performance for general industrial equipment. It features a standard NEMA 140 frame, a 7/8-inch shaft diameter, and a 2-1/4-inch shaft length. The motor is totally enclosed and fan-cooled, ensuring durability in various environments.

Product Information

Standard Information

• Brand: US Motors
• MPN: U1P2DC
• Model: General Purpose Motor

Technical Specifications

• HP: 1
• Phase: Three
• Voltage: 230/460V AC
• Frame: 143TC
• RPM: 1,800
• Amperage: 3.0/1.5 A
• Motor Efficiency: 85.5 %
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Shaft Diameter: 7/8 inch
• Shaft Length: 2 1/4 inch
• Overall Length: 12 1/8 inch
• Weight: 30 lb
• Insulation Class: F
• Motor Mounting Position: Horizontal or Vertical Shaft Down
• Country of Origin: Mexico
