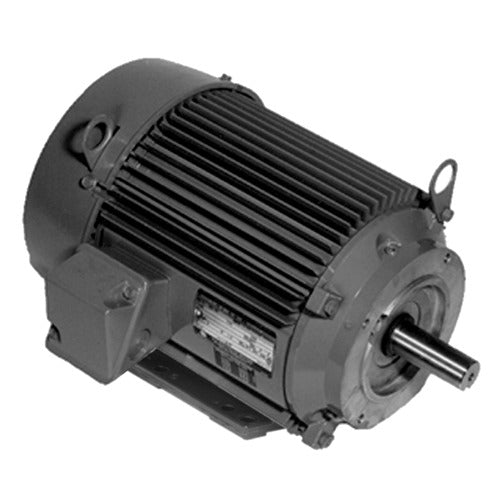

US-Nidec U15P2DCR General Purpose Motor 15 HP 254TC Frame 208-230/460V AC Voltage 1,775 Nameplate RPM

Product Description

The US-Nidec U15P2DCR is a three-phase general purpose motor designed for various industrial applications. This motor operates at a power of fifteen horsepower and reaches a nameplate speed of one thousand seven hundred seventy-five RPM. It is suitable for use in fans, blowers, compressors, and pumps, among other equipment.

• Power: 15 HP
• Voltage: 208-230/460V AC
• Frame Size: 254TC

Product Highlights

This motor features a totally enclosed fan-cooled design, making it efficient for continuous operation. The aluminum construction ensures lightweight durability, and it is inverter rated for variable speed applications.

Product Information

Standard Information

• Amperage: 40-37/18.4
• Enclosure: TEFC

Technical Specifications

• Phase: Three
• RPM: 1800
• Service Factor: 1.15
• Efficiency: 92.4%
• Bearings Type: Ball
• Bearings Size: 6207-2Z-J/C3 / 6309-2Z-J/C3
• Mounting Type: C-Face / Footless
• Material: Aluminum
