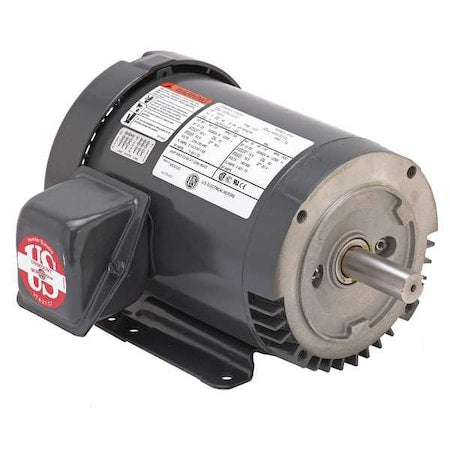

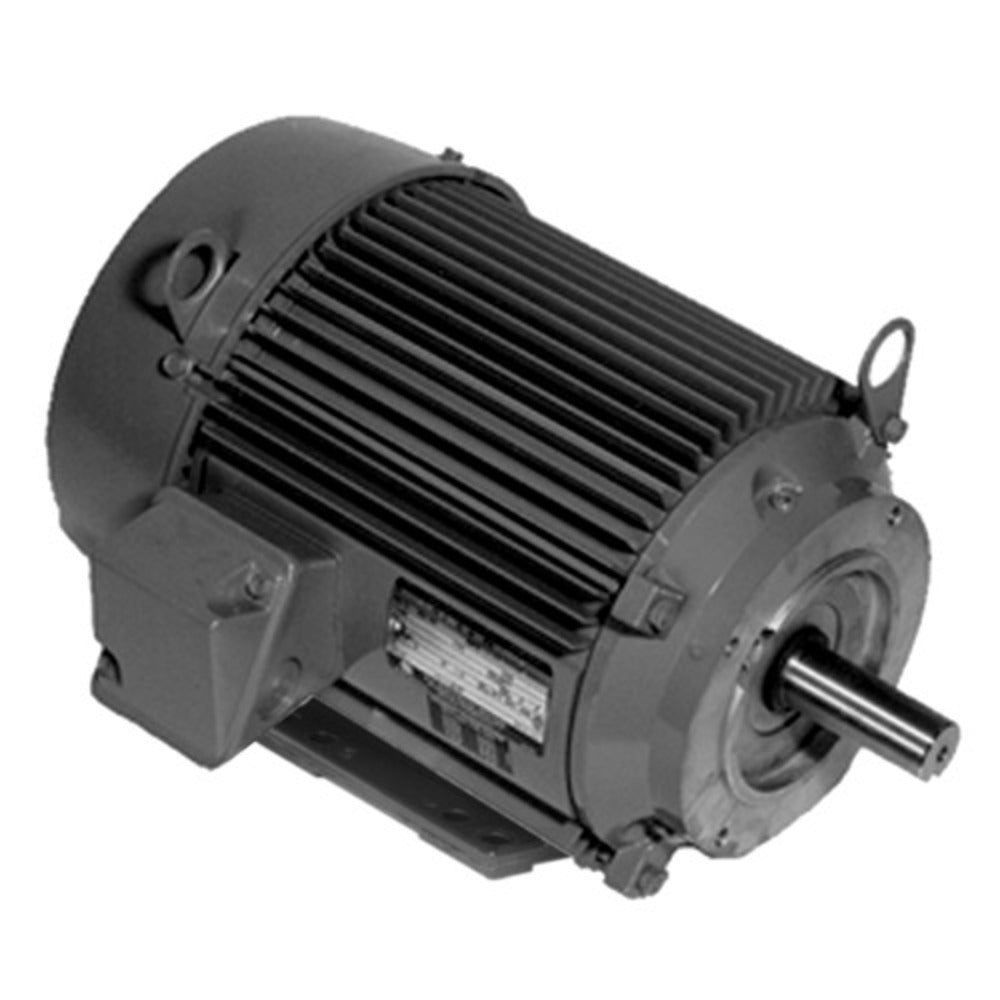

Nidec U15P1DFC 3-Phase C-Face Motor 15 HP 3600 RPM 208-230 460V 215TC Frame

Product Description

The Nidec U15P1DFC is a three-phase 15 HP general purpose motor designed for industrial applications. It operates at 3600 RPM and is suitable for a variety of equipment including fans, blowers, compressors, pumps, and direct connected devices.

• Suitable for general industrial applications
• Operates at 3600 RPM
• Three-phase motor with 208-230/460V

Product Highlights

This Nidec motor offers a reliable solution for various industrial needs. Its aluminum frame ensures durability, and it features ball bearings for smooth operation. The totally enclosed fan-cooled design helps protect the motor from environmental factors.

Product Information

Standard Information

• Brand: Nidec
• MPN: U15P1DFC
• Type: General Purpose Motor

Technical Specifications

• HP: 15
• RPM: 3600
• Voltage: 208-230/460
• Frame: 215TC
• Amperage: 40-35/17.4
• Enclosure: TEFC
• Phase: Three
• Electrical Type: Three Phase
• Rotation: REV
• Material: Aluminum
• Bearings Type: Ball / Ball
• Bearings Size: 6206-2Z-J/C3 / 6208-2Z-J/C3
• Shaft Type: Single
• Efficiency: 91.00%
• Service Factor: 1.25
• Insulation Class: F
• Duty: Continuous
• Motor Design: 3-Phase
• Mounting Type: C-Face / Footed
• Nominal Efficiency: 91 %
• Max. Ambient Temp.: 40 Degrees C
• Full Load Amps: 39.0-35.0/17.6
• Overall Length: 21.5 in
• Shaft Length: 3 3/8 in
• Shaft Dia.: 1 3/8 in
• Motor Shaft Rotation: CW/CCW
• Motor Mounting Position: Horizontal or Vertical Shaft Down
• Motor Thermal Protection: None
