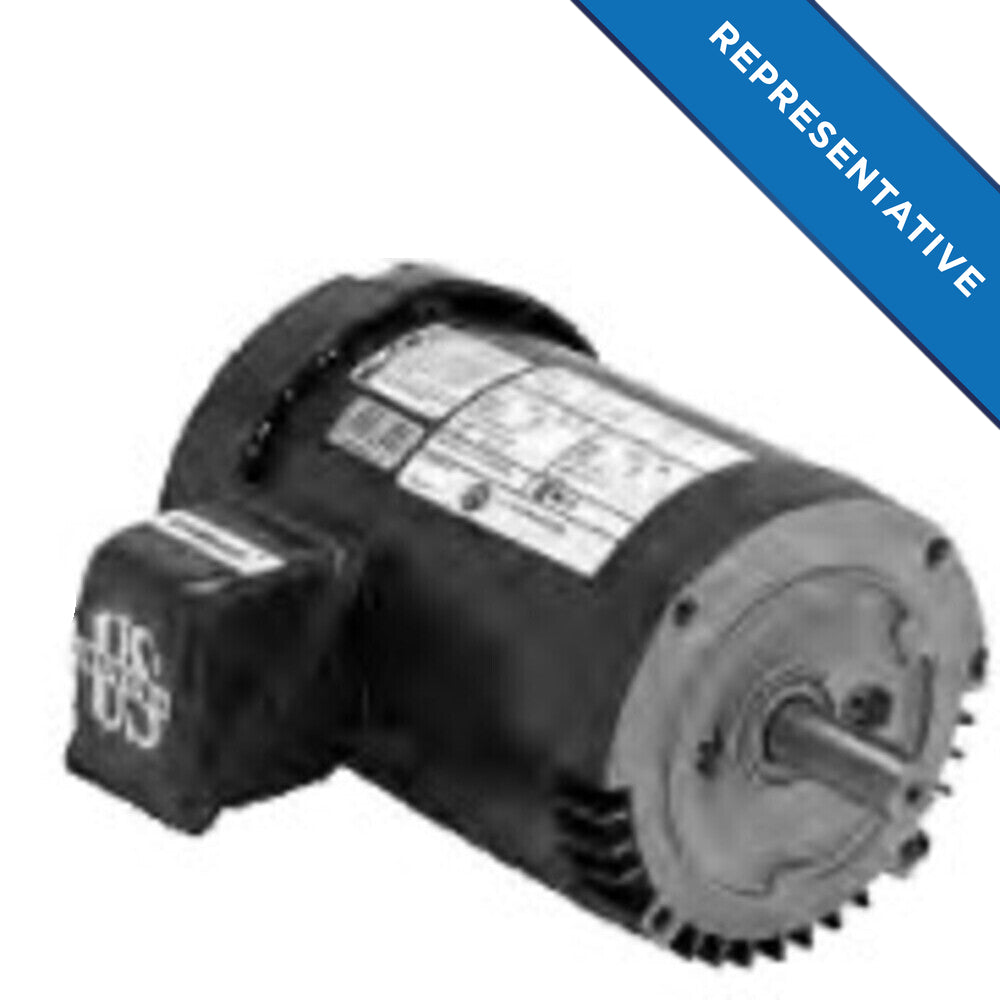

Nidec U12S3ACR General Purpose Motor 1/2 HP 3-Phase 208-230/460V 56C Frame

Product Description

Nidec offers the U12S3ACR, a three-phase general purpose motor with a power rating of one half horsepower. This motor operates with a nameplate speed of one thousand two hundred RPM. It is suitable for various applications including fans, blowers, compressors, and pumps. The motor supports a voltage range of two hundred eight to two hundred thirty or four hundred sixty volts. Its frame size is 56C, making it compatible with multiple mounting configurations.

• Power: Half Horsepower
• Speed: 1200 RPM
• Voltage: 208-230/460V

Product Highlights

The U12S3ACR motor is designed for continuous duty with no thermal protection.

Product Information

Standard Information

• Manufacturer: Nidec
• Type: General Purpose Motor

Technical Specifications

• Horsepower: 1/2
• Rotation: CW/CCW
• Frame Size: 56
• Amperage: 2.1-2.1/1
• Service Factor: 1.25
• Efficiency: 72%
• Enclosure: Totally Enclosed Air-Over
• Maximum Ambient Temperature: 40 Degrees C
