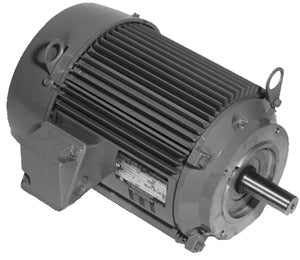

US-Nidec U10P2DCR General Purpose Motor 10 HP 215TC Frame 208-230/460V AC Voltage

Product Description

The US-Nidec U10P2DCR is a three-phase general-purpose motor designed for various industrial applications. This motor operates at ten horsepower with a nameplate speed of one thousand seven hundred sixty RPM. It features a voltage rating of two hundred eight to two hundred thirty/ four hundred sixty volts AC and a frame size of two hundred fifteen TC, ensuring compatibility with different systems.

• Power Rating: 10 HP
• Voltage: 208-230/460 AC
• Full Load Amps: 26.5-23.9/12.0

Product Highlights

This motor is ideal for fans, blowers, pumps, and other direct-connected equipment. Its aluminum construction allows for reduced weight while maintaining strength. The TEFC (Totally Enclosed Fan-Cooled) design enhances durability and efficiency.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: U10P2DCR

Technical Specifications

• Motor Design: 3-Phase
• Power Supply: 208-230/460V AC
• Frame Size: 215TC
• Amperage: 26.5-23.9/12
• RPM: 1760
• Enclosure Type: TEFC
• Service Factor: 1.25
• Bearings Type: Ball/ Ball
