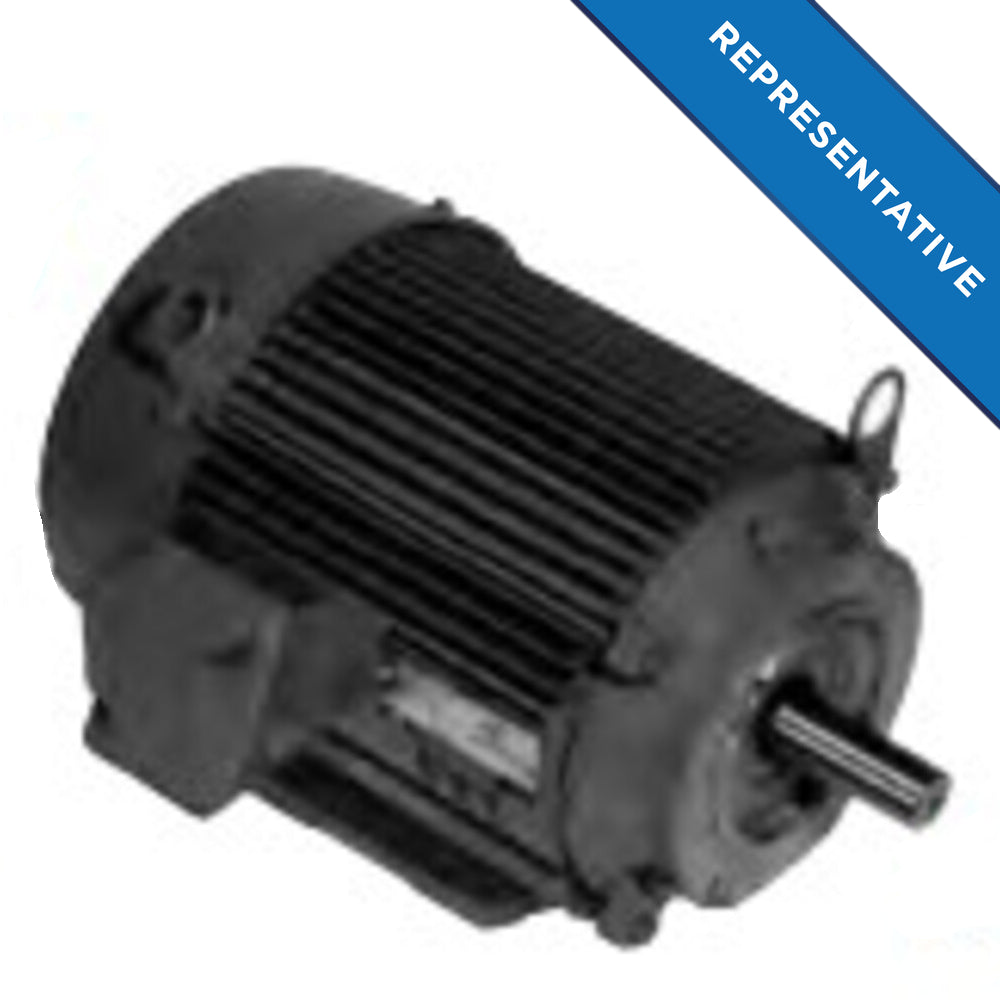

U.S. Motors U10P1DCR General Purpose Motor 10 HP 215TC Frame 208-230/460V AC Voltage 3520 Nameplate RPM

U.S. Motors U10P1DCR General Purpose Motor 10 HP 215TC Frame 208-230/460V AC Voltage 3520 Nameplate RPM

Brand: US MOTORS
SKU: U10P1DCR
Availability: In Stock
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$1,280.87
$1,280.87
LTL Delivery

This product weighs 120 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors U10P1DCR is a general purpose motor designed for three phase applications. This motor offers ten horsepower and operates at a voltage range of two hundred eight volts to four hundred sixty volts AC. It features a rated rotational speed of three thousand five hundred twenty RPM, making it suitable for various industrial equipment.

  • Power: 10 HP
  • Enclosure Type: Totally Enclosed Fan-Cooled (TEFC)
  • Frame Size: 215TC

Product Highlights

The U10P1DCR motor is ideal for use in fans, blowers, compressors, pumps, and other direct connected equipment.

Product Information

Standard Information

  • Phase: Three
  • Duty Cycle: Continuous

Technical Specifications

  • Voltage: 208-230/460V AC
  • Speed: 3520 RPM
  • Amperage: 26.4-23.5/11.8
  • Frame: 215TC
  • Efficiency: 91.00%
  • Material: Aluminum
  • Bearings Type: Ball
  • Service Factor: 1.25
  • Mounting Type: C-Face / Footless
