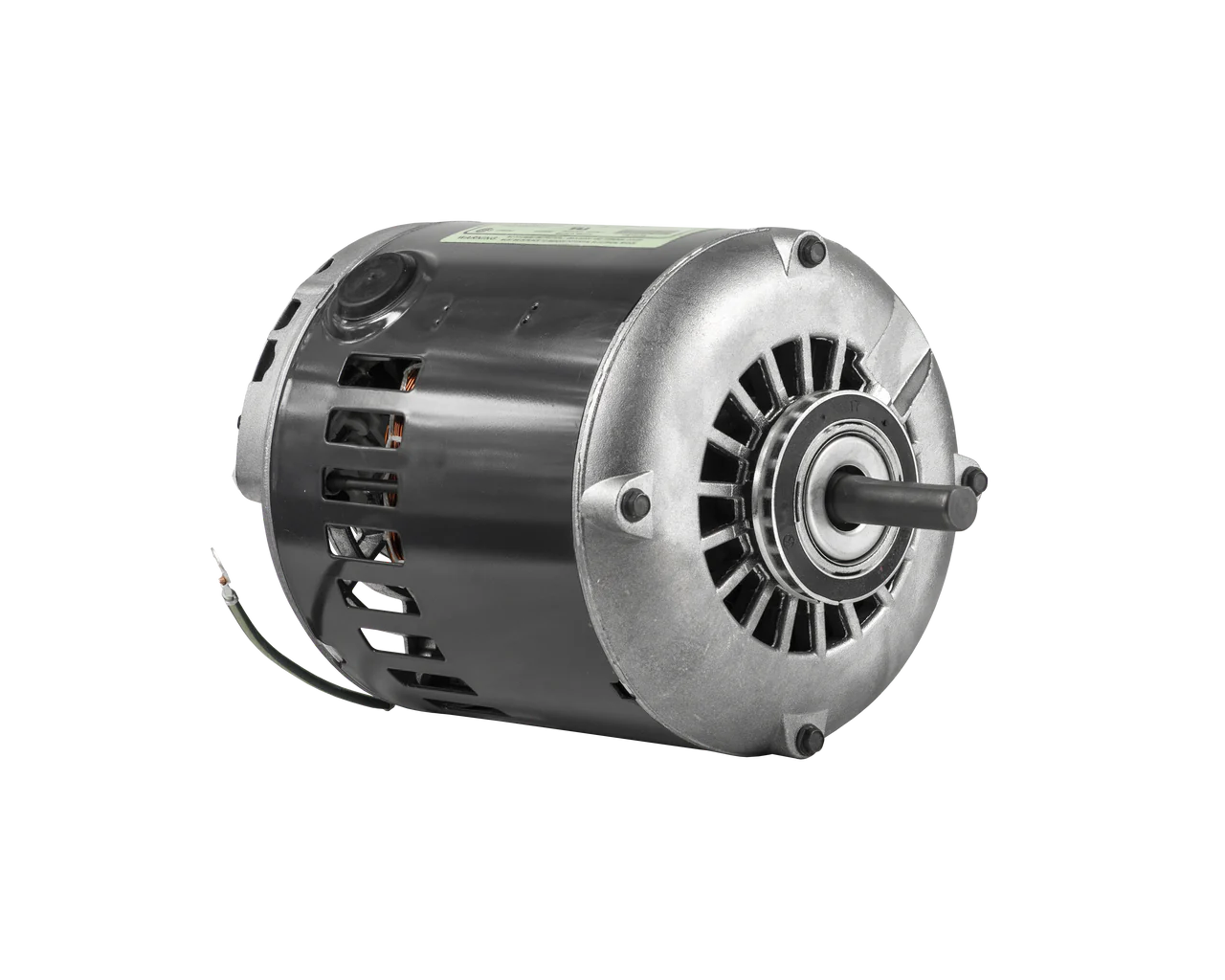

Nidec Motor Corporation TA1413N Emerson / N / , Taco replacement Circulator motor 1/3 - 1/4 HP, 115V, CW Shaft End

Specifications:
1/3- 1/4 HP FITS BOTH APPLICATIONS
1725 RPM
48 FRAME
115 VOLT
6.5 - 6.0 AMP
ODP
BALL BEARING, PERMANENTLY LUBRICATED (DO NOT GREASE)
40 DEGREE C.
INSULATION CLASS B
SINGLE PHASE
CRADLE BASE
SINGLE SPEED
CCW LEAD END, (CW SHAFT END)
AUTOMATIC RESET THERMAL PROTECTION
CENTER RING TO CENTER RING DIMENSION 6.93 IN.

Note: no cradle supplied, this motor is designed to fit the existing Taco bracket for 1/3 HP and 1/4 HP.

Cross ref: S55JXPRN-8619, TACO 121-151, S55JXDYE2681, TACO 121, 122, 131, 1600, 1610, 1615 PUMPS, 5XBJ003, 5XBJ002
