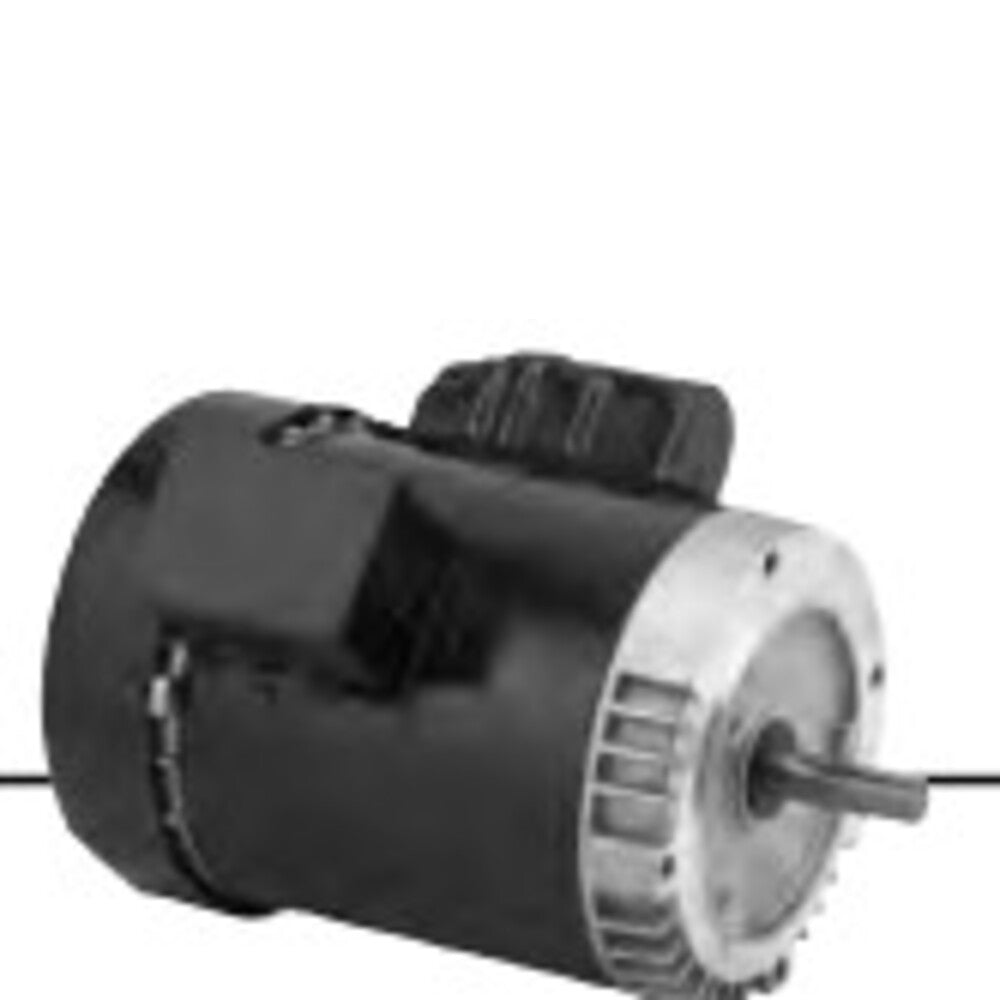

US-Nidec T34CA1JCR General Purpose Motor 3/4HP 3450RPM 115/208-230V

Product Description

The US-Nidec T34CA1JCR General Purpose Motor is a versatile motor designed for various applications. It offers a power of 3/4HP and operates at 3450RPM, making it suitable for many kinds of machinery and tools. This motor supports a voltage range of 115/208-230V, ensuring flexibility in power supply.

• Cap Start technology
• TEFC enclosure for protection
• Single phase operation

Product Highlights

This motor from US-Nidec is built with Cap Start technology, providing reliable performance. It features a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring protection against contaminants. Its single-phase operation makes it easy to integrate into various systems.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: T34CA1JCR
• Type: General Purpose Motor

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 3/4HP
• RPM: 3450RPM
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230V
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: C-Face / Footless
• Amperage: 10.4/5.3-5.2
• Shaft Type: Single
• Insulation Class: B
• Efficiency: 67.80%
• Service Factor: 1.15
