Product Description

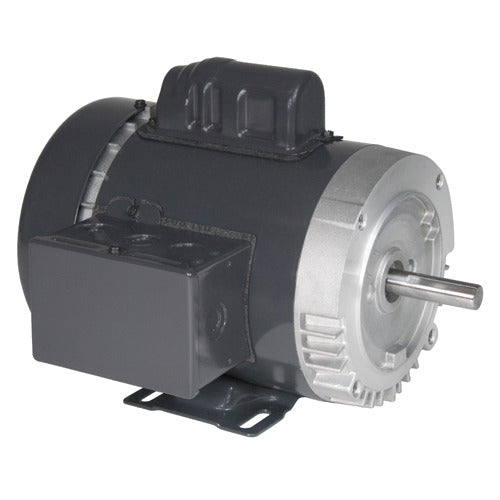

The U.S. Motors T2C2J14C offers reliable performance with a powerful 2 HP motor. It is designed for various applications and is housed in a TEFC enclosure to ensure protection against external elements.
- 2 HP power
- 1725 RPM speed
- 145TC frame size
Product Highlights
The U.S. Motors T2C2J14C Motor is a robust solution for general purpose applications. Its 2 HP motor ensures dependable performance, while the 1725 RPM speed suits a variety of uses. The TEFC enclosure offers protection against dust and contaminants, making it ideal for various environments.
Product Information
Standard Information
-
Brand: U.S. Motors
-
MPN: T2C2J14C
Technical Specifications
-
Electrical Type: Cap Start
-
HP: 2
-
Frame: 145TC
-
Enclosure: TEFC
-
Phase: Single
-
Voltage: 115/208-230
-
Rotation: REV
-
Material: Rolled Steel
-
Bearings Type: Ball / Ball
-
Bearings Size: 6203 / 6205
-
Mounting: C-Face / Footed
-
Amperage: 18.9/10.3-9.4
-
Efficiency: 81.50%
-
Insulation Class: F
-
Service Factor: 1.15
-
Frame Size: 145
-
Frame Suffix: TC
