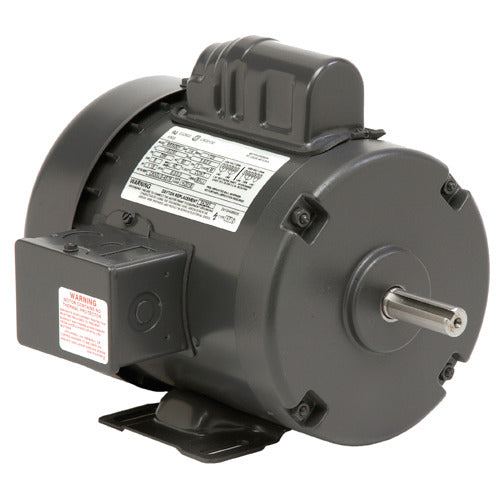

US-Nidec T2C1JH General Purpose Motor Cap Start 2HP 3600RPM 115/208-230V TEFC

Product Description

The US-Nidec T2C1JH General Purpose Motor is specifically designed for a variety of electrical applications requiring a reliable and consistent power source. This capacitor start motor boasts a horsepower of 2 and operates at 3600 RPM. Built with rolled steel, it is housed in a TEFC enclosure and is suitable for single-phase operations with a voltage range of 115/208-230V.

• Capacitor start for improved efficiency
• TEFC enclosure for added protection
• Single-phase for versatile use

Product Highlights

The US-Nidec T2C1JH is ideal for diverse electrical applications needing a general-purpose motor. Its robust construction ensures longevity and reliable performance.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: T2C1JH
• Product Type: General Purpose Motor

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 2 HP
• Speed: 3600 RPM
• Frame: 56H
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230V
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: Rigid Base
• Amperage: 19.5/10.8-9.7
• Efficiency: 80.00%
• Insulation Class: B
• Service Factor: 1.15
