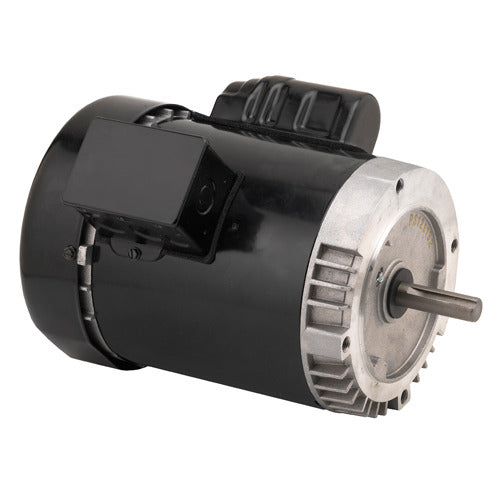

U.S. Motors T2C1J14CR Capacitor-Start General Purpose Motor, 2 HP, 145TC Frame, 115/208-230V AC Voltage

Product Description

The U.S. Motors T2C1J14CR is a capacitor-start general purpose motor designed for various applications. With a power rating of two horsepower and a single-phase operation, this motor achieves a nominal speed of three thousand four hundred fifty RPM. It operates effectively on a voltage range of one hundred fifteen to two hundred thirty volts AC. This model is especially suitable for environments requiring a reliable motor solution.

• Capacitor-start design for efficient operation
• Rated for continuous duty with thermal protection
• Compatible with horizontal mounting positions

Product Highlights

The T2C1J14CR motor provides a robust solution for general applications, ensuring reliable performance and durability. Its design features also allow for flexibility in installation and use.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T2C1J14CR

Technical Specifications

• Power: 2 HP
• RPM: 3450
• Voltage: 115/208-230V AC
• Frame Size: 145TC
• Phase: Single
• Efficiency: 86.3%
• Service Factor: 1.15
• Mounting Type: Rigid Base
• Enclosure Design: Totally Enclosed Fan-Cooled
• Max. Ambient Temp.: 40 Degrees C
