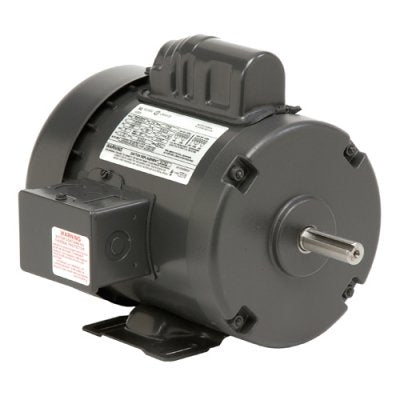

U.S. Motors T1C2JH 1 HP 1-Phase Motor TEFC 56H 115/208-230V

Product Description

The U.S. Motors T1C2JH is a one horsepower, single-phase motor designed for various industrial applications. It operates at a speed of 1725 RPM and is suitable for air compressors, pumps, conveyors, and blowers. The motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, which protects it from dust and moisture, extending its lifespan.

• Durable cast-iron frame
• Versatile voltage of 115/208-230
• Suitable for continuous duty operation

Product Highlights

This motor is built for efficiency and reliability in demanding environments. It meets high industrial standards for performance and energy consumption.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T1C2JH

Technical Specifications

• Motor Type: General Purpose
• Power: 1 HP
• Phase: Single
• Voltage: 115/208-230V
• RPM: 1725
• Frame Size: 56H
• Enclosure Type: TEFC
• Amperage: 14.0/6.9-7.0
• Weight: 32 lbs
• Efficiency: 70%
• Insulation Class: B
