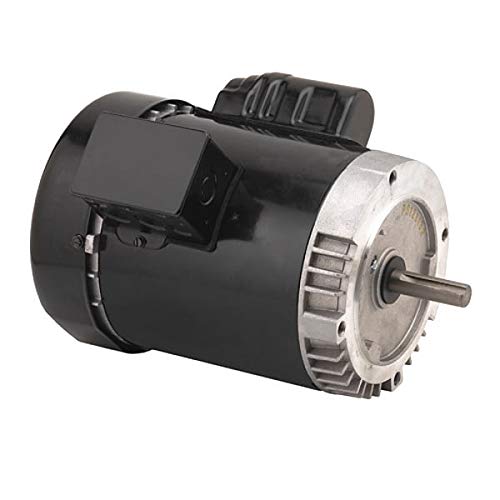

U.S. Motors T1C2JCR General Purpose Motor 1 HP 115/208-230V AC Voltage 56C Frame 1725 RPM

Product Description

The U.S. Motors T1C2JCR is a one horsepower general purpose motor designed for various applications. This motor operates at a voltage of one hundred fifteen to two hundred thirty volts AC and features a totally enclosed fan-cooled (TEFC) design. With a speed of one thousand seven hundred twenty-five RPM, this single-phase motor offers reliable performance.

• Power: One horsepower
• Voltage: 115/208-230 AC
• Frame: 56C

Product Highlights

This motor is suitable for general application uses, providing effective operation with a service factor of 1.15. It is designed for continuous duty with a maximum ambient temperature of forty degrees Celsius. Its compact design allows for versatile mounting options.

Product Information

Standard Information

• Product Type: Motor
• Phase: Single

Technical Specifications

• Motor Design: Capacitor-Start
• Full Load Amps: 14.0/6.9-7.0
• Service Factor: 1.15
• Insulation Class: B
• Max. Ambient Temperature: 40 Degrees C
• Shaft Diameter: 5/8 inches
• Shaft Length: 2 1/16 inches
• Overall Length: 12 3/8 inches
• Length Less Shaft: 10 5/16 inches
• Material: Rolled Steel
• Bearings: Ball
