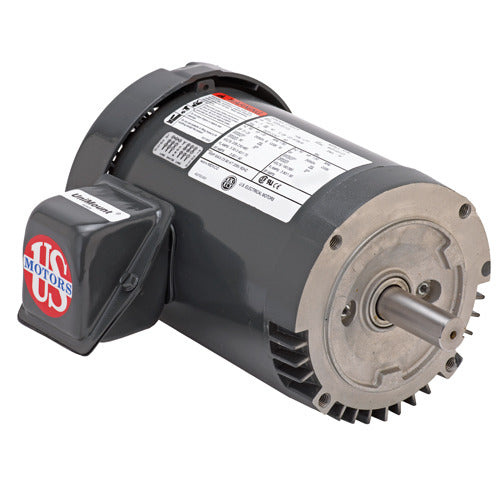

US-Nidec T14S3DCR General Purpose Motor 1/4 HP 208-230/460V 1200 RPM Frame 56

Product Description

The US-Nidec T14S3DCR General Purpose Motor, with MPN T14S3DCR, offers reliable performance for various industrial applications. Designed for fans, blowers, compressors, pumps, and other direct connected equipment.

• 1/4 HP motor providing consistent operation
• 208-230/460 voltage to suit different power requirements
• 1200 RPM ensuring optimal speed for tasks

Product Highlights

This general purpose motor from US-Nidec is versatile and durable, making it ideal for various industrial environments.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: T14S3DCR

Technical Specifications

• Horsepower: 1/4 HP
• RPM: 1200
• Voltage: 208-230/460
• Frame Size: 56
• Enclosure: TEFC
• Phase: Three
• Material: Rolled Steel
• Diameter: 6.5 inches
• Amperage: 1.4-1.4/0.7
• Rotation: REV
• Bearings: Ball
• Mounting: C-Face / Footless
• Shaft Type: Single
• Efficiency: 75.50%
• Insulation Class: B
• Service Factor: 1.15
• C Dimension: 11.3 inches
