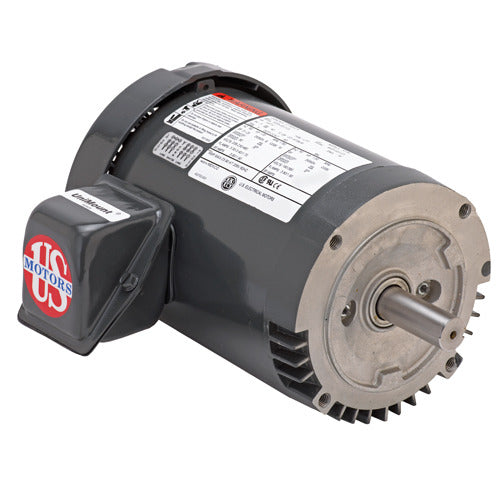

U.S. Motors T13S1ACR General Purpose Motor 1/3 HP 208-230/460V

Product Description

The U.S. Motors T13S1ACR is a three-phase general purpose motor with a horsepower rating of one-third. It operates at a speed of three thousand four hundred fifty RPM. This motor is designed for applications that involve fans, blowers, compressors, pumps, and direct connected equipment.

• Voltage rating: 208-230/460V AC
• Frame size: 56C
• Includes drip cover and brakes

Product Highlights

The T13S1ACR motor is built for durability with a totally enclosed fan-cooled design. It is suitable for continuous duty operations and has a motor service factor of 1.15.

Product Information

Standard Information

• Motor Type: General Purpose
• Amperage: 1.7-1.8/0.9

Technical Specifications

• HP: 1/3
• RPM: 3450
• Voltage: 208-230/460
• Frame Size: 56
• Weight: 32 lb
• Enclosure Type: TEFC
• Phase: Three
• Orientation: CCW
• Mounting Type: C-Face / Footless
