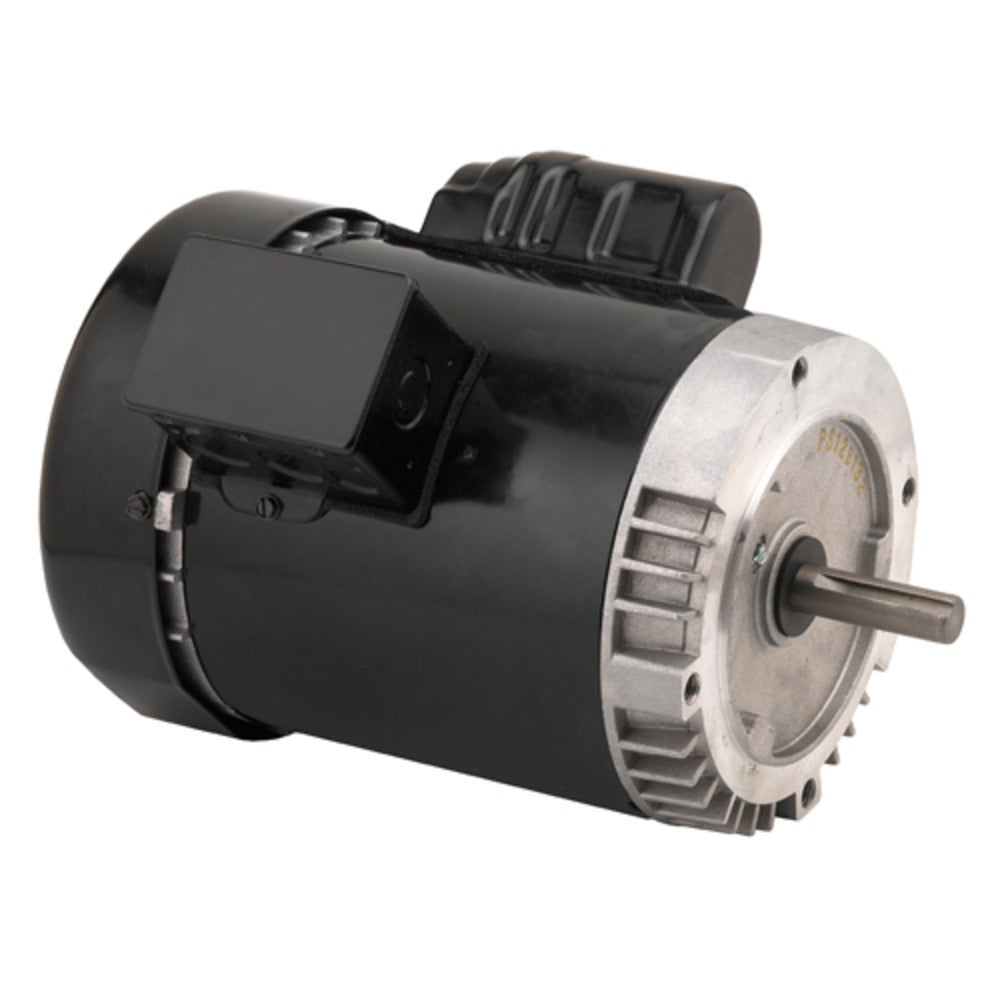

Nidec T13CA2JCR Cap Start C-Face Motor 1/3 HP 1800 RPM 115 208-230V 56C Frame

Product Description

The Nidec T13CA2JCR is a general purpose capacitor-start motor designed for various applications. This motor has a power rating of one third horsepower and operates at eighteen hundred revolutions per minute. It supports dual voltage of one hundred fifteen or two hundred eight to two hundred thirty volts and comes in a fifty-six C frame size.

• General purpose AC motor with capacitor-start design
• Power rating: 1/3 HP with 1800 RPM
• Dual voltage capability: 115/208-230V

Product Highlights

This motor is suitable for HVAC, refrigeration, and general mechanical applications.

Product Information

Standard Information

• Brand: Nidec
• MPN: T13CA2JCR

Technical Specifications

• Type: Capacitor-start AC Motor
• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230V
• Rotation: REV
• Amperage: 6.6/3.0-3.3
• Mounting Type: C-Face / Footless
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Service Factor: 1.15
