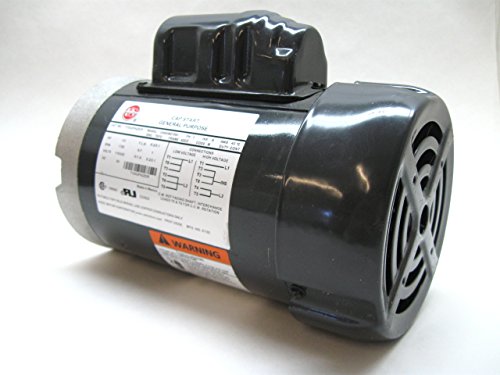

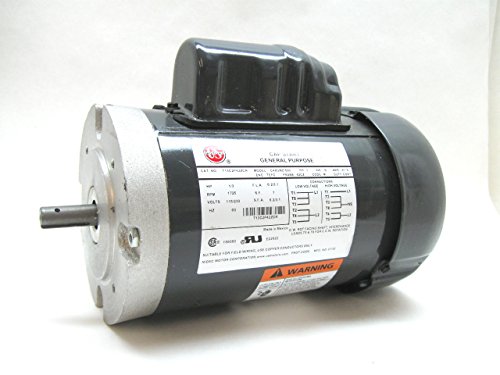

US Motors T13C2P42ZCR General Purpose Motor 1/3 Hp 115/230 Vac

Product Description

The US Motors T13C2P42ZCR General Purpose Motor is a versatile motor designed for various applications. With a power rating of 1/3 hp and voltage options of 115/230 Vac, this motor is suitable for both residential and commercial use. It features a 42CZ frame and a TEFC (Totally Enclosed Fan Cooled) enclosure, ensuring durability and efficient performance.

• 1/3 Hp power rating
• 115/230 Vac voltage
• TEFC enclosure for protection

Product Highlights

This US Motors General Purpose Motor offers reliable performance with its rolled steel construction and ball bearings. It operates at 1725 rpm and is compatible with various devices requiring single-phase power.

Product Information

Standard Information

• Brand: US Motors
• MPN: T13C2P42ZCR

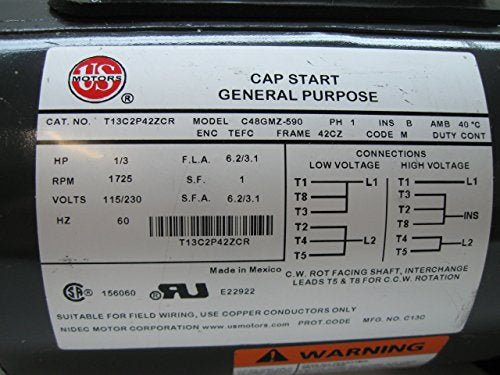

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 1/3
• Frame: 42CZ
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball
• Bearing SE Type: Ball
• Bearing OSE Type: Ball

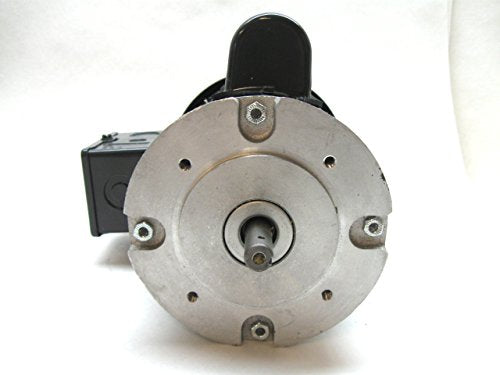

• Mounting: C-Face / Footless
• Amperage: 6.2/3.1
• Shaft Type: Single
• Insulation Class: B
• Service Factor: 1
• Frame Size: 42
• Frame Suffix: CZ
