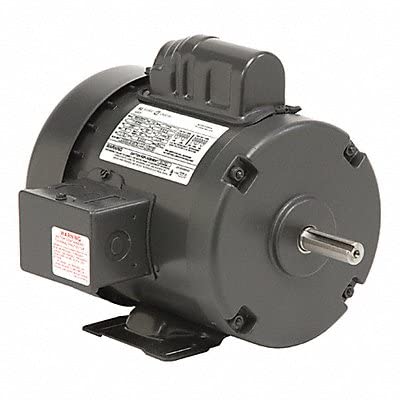

U.S. Motors T13C2J Motor, 1/3HP, 1725RPM, 115/208-230V, 56, TEFC

Product Description

The U.S. Motors T13C2J is a general purpose motor designed for various applications. This single phase motor operates at one third horsepower and features a design suited for capacitor-start operation. With a nameplate speed of one thousand seven hundred twenty-five RPM, it is capable of functioning at voltages of one hundred fifteen, two hundred eight, or two hundred thirty volts AC.

• Type: General Purpose Motor
• Frame Size: 56
• Duty Cycle: Continuous

Product Highlights

This electric motor is durable, equipped with a rigid base for mounting in horizontal positions. It features a totally enclosed fan-cooled design which protects the inner components while allowing for efficient cooling.

Product Information

Standard Information

• Motor Type: Capacitor-Start
• Phase: Single

Technical Specifications

• Horsepower: 1/3
• Nameplate RPM: 1725
• Voltage: 115/208-230V AC
• Full Load Amps: 6.6/3.3-2.9
• Max. Ambient Temperature: 40 Degrees C
• Insulation Class: B
• Motor Bearings: Ball
• Mounting Type: Rigid Base
