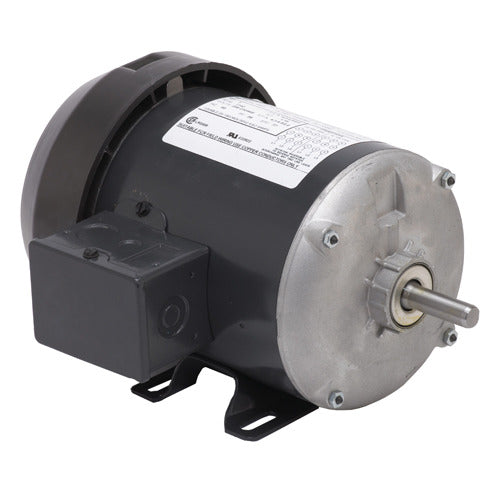

US-Nidec T13B1N4 General Purpose Motor 1/3 HP 48 Frame 115V AC Voltage

Product Description

The US-Nidec T13B1N4 is a split-phase general purpose motor that delivers reliable performance for various applications. It operates at one third horsepower with a speed rating of three thousand four hundred RPM. This motor is designed for flexibility and can fit into numerous mounting positions.

• Electrical Type: Split Phase
• Voltage: 115
• Frame Size: 48Z

Product Highlights

This motor is suitable for use in general applications, featuring a rigid base mounting type and designed for continuous duty. Its totally enclosed fan-cooled enclosure ensures longevity and efficiency.

Product Information

Standard Information

• Motor HP: 1/3
• Phase: Single
• Max Ambient Temperature: 40 Degrees Celsius

Technical Specifications

• Nameplate RPM: 3450
• Full Load Amps: 5.4
• Enclosure Design: Totally Enclosed Fan-Cooled
• Service Factor: 1
• Bearing Type: Ball
• Motor Frame Material: Steel
• Motor Mounting Type: Rigid Base
• Motor Shaft Rotation: CW/CCW
