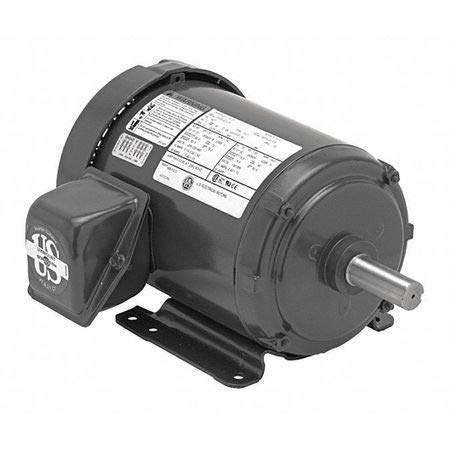

U.S. Motors T12S2G Motor 1/2HP 1800RPM 575V TEFC

Product Description

The U.S. Motors T12S2G general purpose motor is designed for various industrial applications. This three-phase motor delivers 1/2 HP at a nameplate RPM of 1,800 with a voltage rating of 575V. The motor is housed in a totally enclosed fan-cooled (TEFC) enclosure, ensuring durability in challenging environments.

• General purpose motor for industrial use
• Three-phase, 1/2 HP, 1,800 RPM
• Totally enclosed fan-cooled (TEFC) design

Product Highlights

Ideal for use in industrial equipment like fans, blowers, compressors, and pumps. The rigid base mounting and continuous duty cycle ensure reliable operation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T12S2G
• Motor Type: General Purpose Motor

Technical Specifications

• Horsepower: 1/2 HP
• RPM: 1,800
• Voltage: 575V
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame: 56
• No. of Speeds: 1
• Mounting: Rigid Base
• Amperage: 0.8
• Service Factor: 1.15
• Insulation Class: B
• Body Diameter: 6.5 inches
• Rotation: CW/CCW
• Material: Rolled Steel
• Motor Thermal Protection: None
