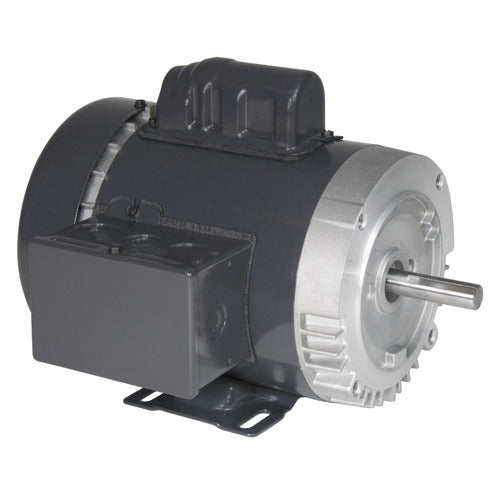

Nidec T12C2JC General Purpose Motor 1/2 HP 1800 RPM 115/208-230V 56C Frame

Product Description

The Nidec T12C2JC General Purpose Motor is a reliable and efficient motor designed for a wide range of applications. With a horsepower of 1/2, it operates at 1800 RPM and supports voltages of 115, 208-230V. It features a 56C frame and a TEFC (Totally Enclosed Fan-Cooled) enclosure.

• 1/2 HP power
• 1800 RPM speed
• 115/208-230 voltage range

Product Highlights

This motor is ideal for various general-purpose uses, providing consistent performance and durability.

Product Information

Standard Information

• Type: General Purpose AC Motor
• Motor Type: Capacitor-Start
• HP: 1/2
• Voltage: 115/208-230

Technical Specifications

• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Amperage: 9.0/4.3-4.5
• Shaft Type: Single
• Efficiency: 60.70%
• Insulation Class: B
• Service Factor: 1.15
• Mounting Type: C-Face / Footed
