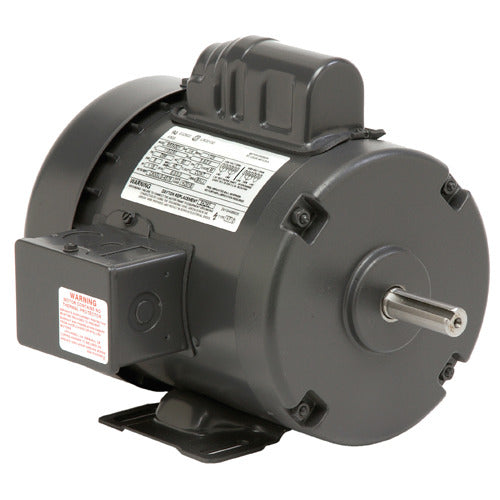

Nidec T12C2J4 General Purpose Motor 1/2 HP 48 Frame 115/208-230V

Product Description

Nidec T12C2J4 is a general-purpose capacitor-start motor. It is designed for various applications needing reliable motor performance. This motor operates at one-half horsepower with a frame size of forty-eight and supports dual voltage at one hundred fifteen and two hundred eight to two hundred thirty volts.

• General-purpose AC motor
• Single-phase operation
• Capacitor-start type

Product Highlights

This motor is suitable for use in HVAC systems, fans, and other mechanical devices that require dependable motor function.

Product Information

Standard Information

• Motor Type: Capacitor-Start
• Phase: Single

Technical Specifications

• HP: 1/2
• Nameplate RPM: 1800
• Voltage: 115/208-230
• Frame Size: 48
• Full Load Amps: 9/4.3-4.5
• Ambient Temperature: Max 40 degrees Celsius
• Duty Cycle: Continuous
• Insulation Class: B
• Motor Enclosure: Totally Enclosed Fan-Cooled
• Mounting Type: Rigid Base
• Shaft Rotation: CW/CCW
