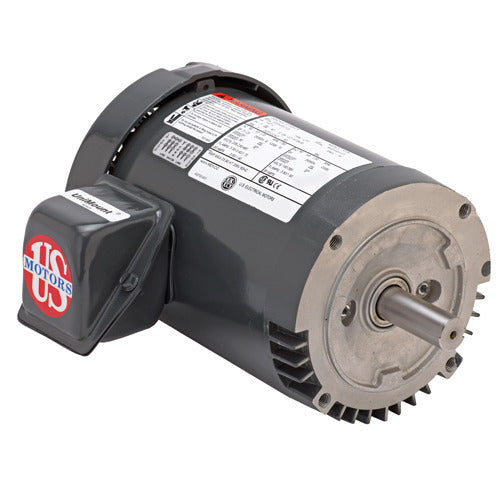

US-Nidec S3P2ACR General Purpose Motor 3HP 1800RPM 182TC TEFC

Product Description

US-Nidec S3P2ACR general purpose motor is a reliable choice for industrial use. This motor delivers 3 horsepower and operates at 1800 RPM. It is designed with a TEFC enclosure and uses a C-Face footless mounting.

• 208-230/460V voltage rating
• Three-phase electrical type
• Rolled steel material

Product Highlights

This motor is suitable for general industrial equipment including fans, blowers, compressors, and pumps. It ensures smooth operation with its ball bearing system and efficient TEFC enclosure.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: S3P2ACR
• Model: General Purpose Motor
• Applications: General industrial equipment

Technical Specifications

• Horsepower: 3
• RPM: 1800
• Voltage: 208-230/460V
• Frame: 182TC
• Enclosure: TEFC
• Phase: Three
• Amperage: 8.4-7.8/3.9
• Material: Rolled Steel
• Rotation: REV
• Mounting: C-Face / Footless
• Shaft Type: Single
• Efficiency: 89.50%
• Insulation Class: F
• Service Factor: 1.15
