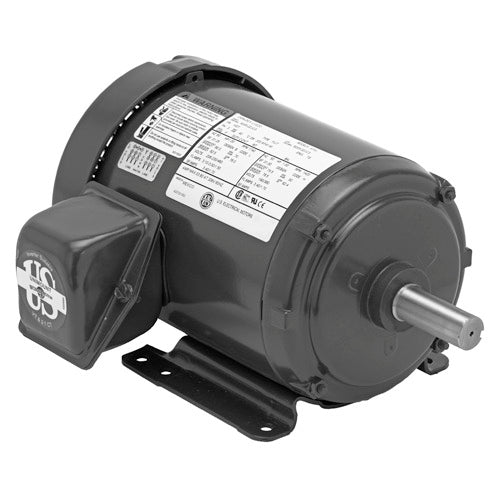

U.S. Motors S2P3A General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors S2P3A is a general-purpose motor designed for three-phase applications. This motor features a totally enclosed fan-cooled (TEFC) design, making it suitable for various industrial environments. It operates at two horsepower and a speed of twelve hundred revolutions per minute (RPM), drawing power with a voltage rating of two hundred eight to two hundred thirty/ four hundred sixty volts.

• TEFC design for reliability in various conditions
• Suitable for general industrial applications
• Continuous duty operation

Product Highlights

This motor is ideal for machinery such as fans, blowers, compressors, and pumps. Its horizontal footed mounting allows for flexibility in installation. The 184T frame size ensures compatibility with many existing setups.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: S2P3A
• Power: 2 HP

Technical Specifications

• Enclosure: TEFC
• Frame Size: 184T
• Max RPM: 1200
• Voltage Rating: 208-230/460
• Full Load Amps: 6.4-6.2/3.1
• Frequency: 60 Hz
• Service Factor: 1.15
• Weight: 74.0 lbs
