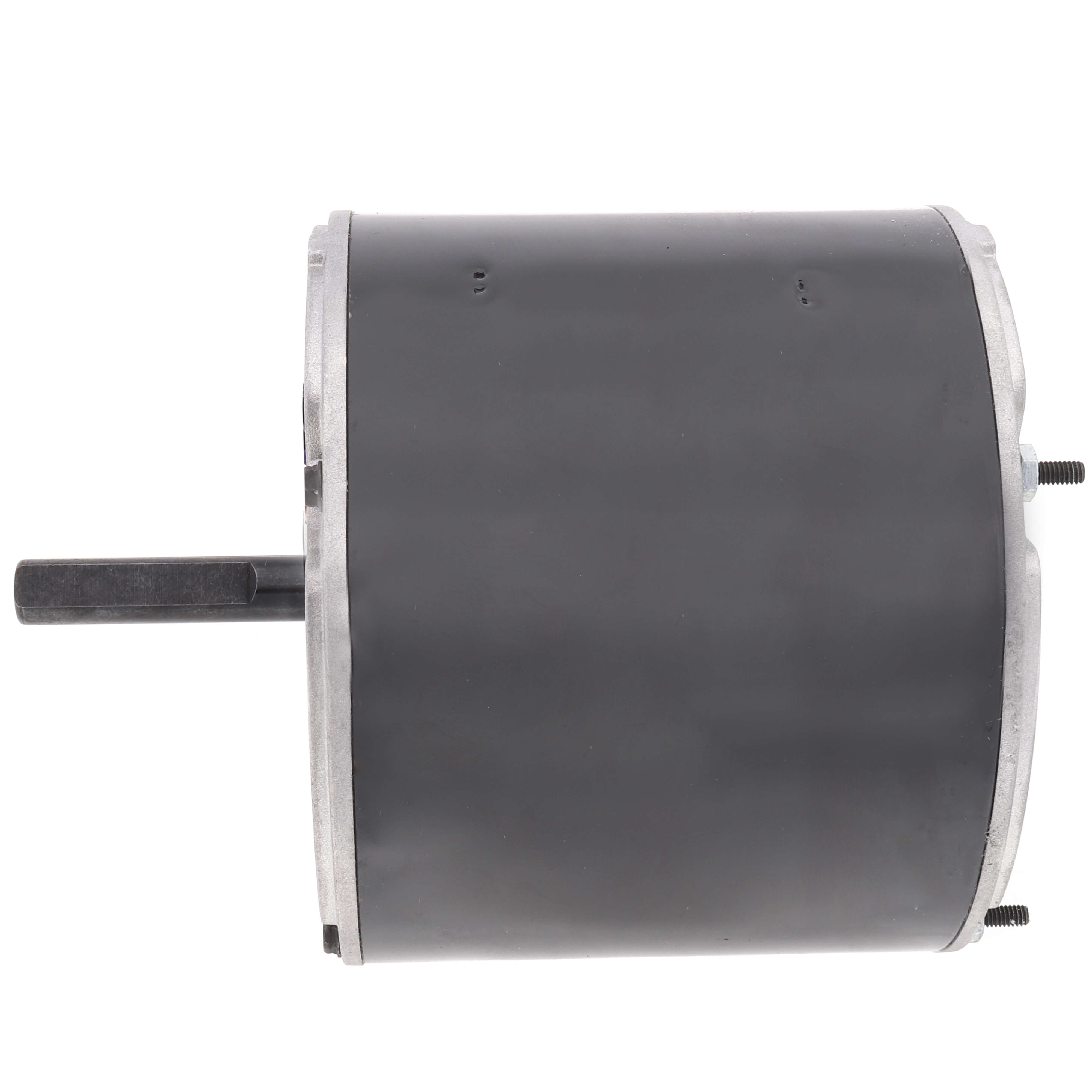

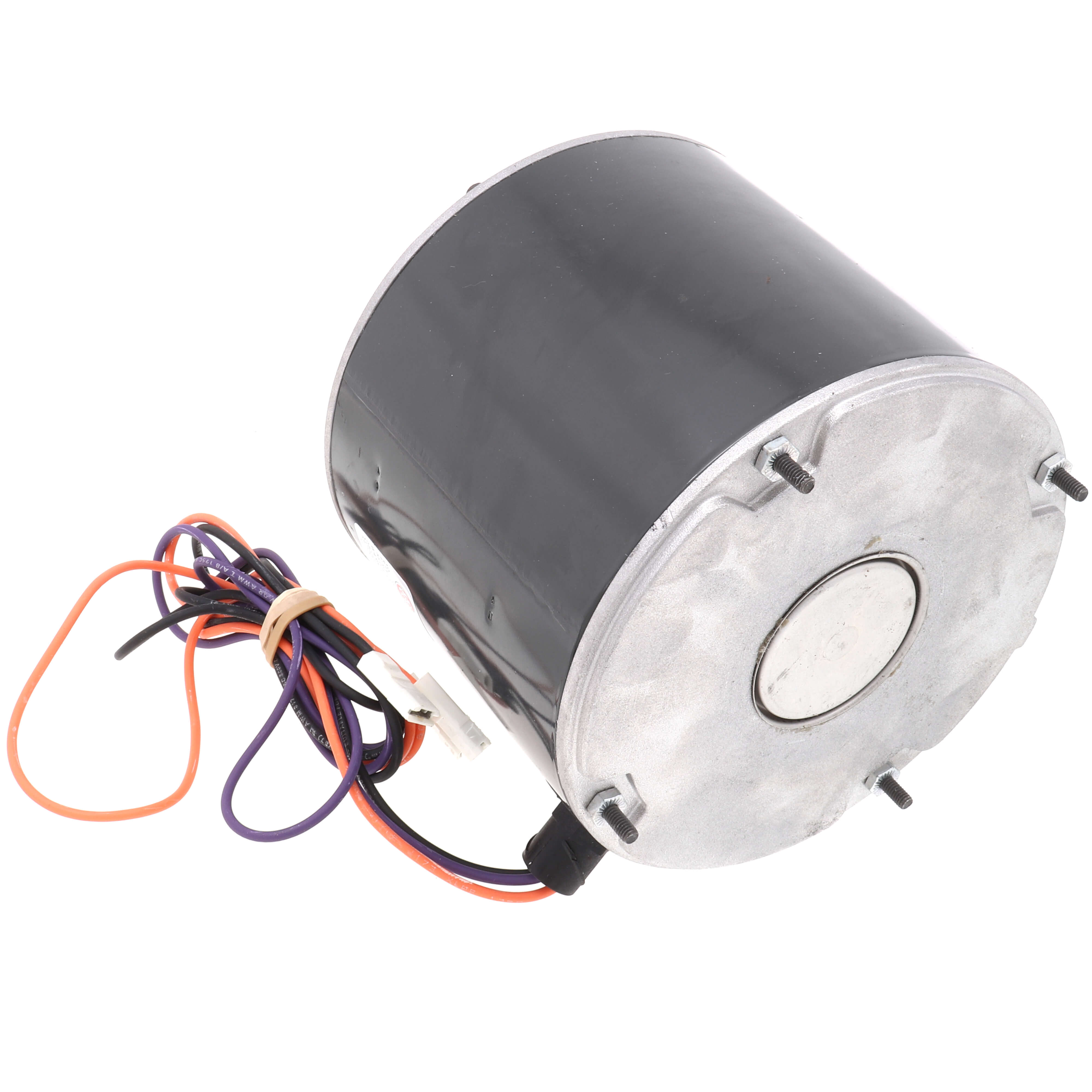

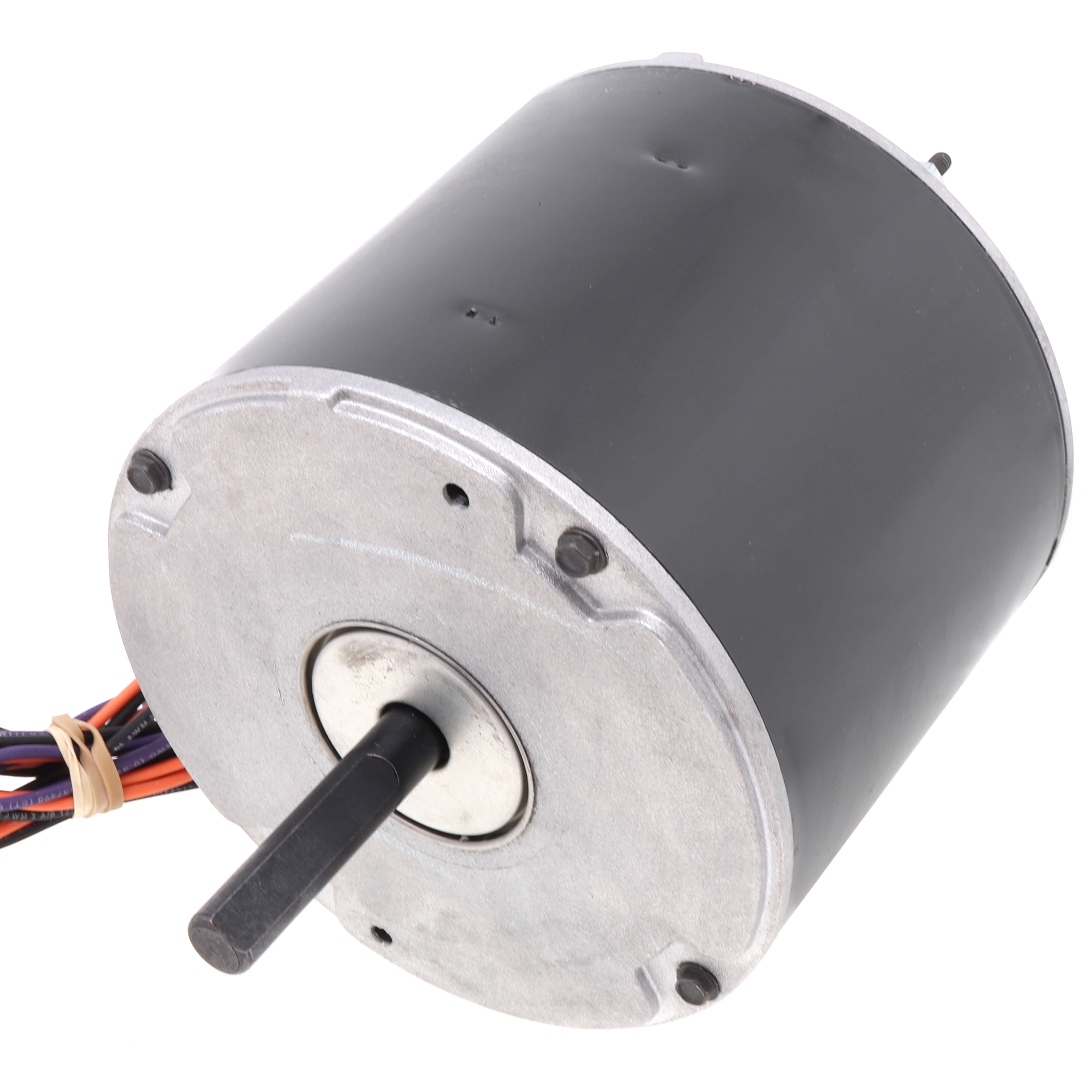

Nidec-US Motors LX7931 1/4HP 208/230V 1ph 825rpm MTR Replacement

Product Description

The Nidec-US Motors LX7931 1/4 HP electric motor provides reliable performance for various industrial applications. Operating at 208/230V, this single-phase motor reaches 825 RPM.

• 1/4 HP motor
• 208/230V single-phase
• 825 RPM

Product Highlights

Crafted with durable materials for longevity, the Nidec-US Motors LX7931 is ideal for demanding environments. Its compact design simplifies integration into systems and equipment, ensuring efficient operation.

Product Information

Standard Information

• Brand: Nidec-US Motors
• MPN: LX7931

Technical Specifications

• Horse Power: 1/4 HP
• Voltage: 208-230V
• Phase: 1
• RPM: 825
• Amperage: 1.7A
• Frame: 48Y
• Mount: Stud
• Rotation: Counterclockwise Lead End
• Motor Application: OEM Replacement
• Motor Sub Application: Condenser Fan Motor
• Motor Enclosure Design: Totally Enclosed Air Over (TEAO)
• Capacitor Required: Included
• Motor Bearings: Ball
• Application: Condenser Fan
• Body Diameter: 5.6 inches
• Manufacturers Warranty Length: 1 year
• Weight: 11.655 lbs
