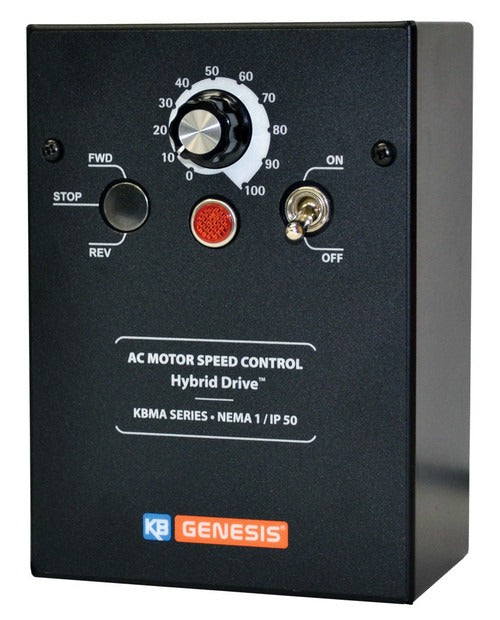

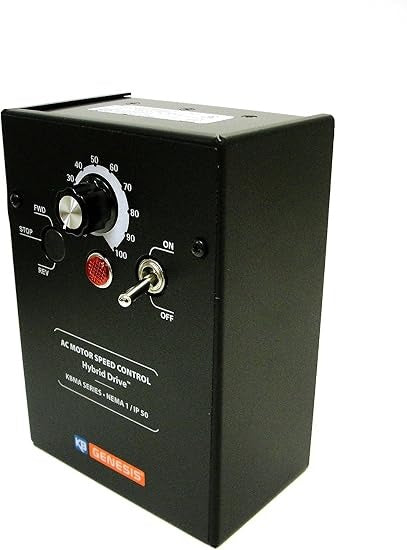

Kb Electronics KBMA-24D Hybrid AC Drive 1 HP (NEMA-1) 9533

Product Description

Kb Electronics KBMA-24D is a hybrid AC drive that accepts single-phase 115/230 VAC input and provides three-phase 230 VAC output, with jumper-selectable horsepower from 1/8 (0.09 kW) to 1.0 (0.75 kW). Housed in a rugged NEMA-1 / IP50 aluminum enclosure, it offers 200% starting torque, flux vector compensation with static auto-tune, electronic inrush current limiting, and built-in protections for panel-mounted motor speed control.

• Single-phase 115/230 VAC input (98–132 VAC, 177–264 VAC) selectable; 230 VAC three-phase output; jumper-selectable 1/8 to 1.0 HP; 3.6 A constant-torque rating.
• Flux vector compensation with static auto-tune, Class A RFI filter, diagnostic LED indicators, on/off AC line switch and basic programmable trimpot adjustments.
• Protections include electronic inrush current limit, undervoltage/overvoltage, phase-to-phase short circuit, ride-through and regeneration protection; run/fault relay output contacts.

Product Highlights

Single-phase to three-phase VFD; jumper-selectable 1/8–1.0 HP; NEMA-1 / IP50 aluminum enclosure; 200% starting torque; 3.6 A constant torque.

Product Information

Standard Information

• Brand: KB ELECTRONICS
• Manufacturer Part Number: KBMA-24D
• Country of Origin: China
