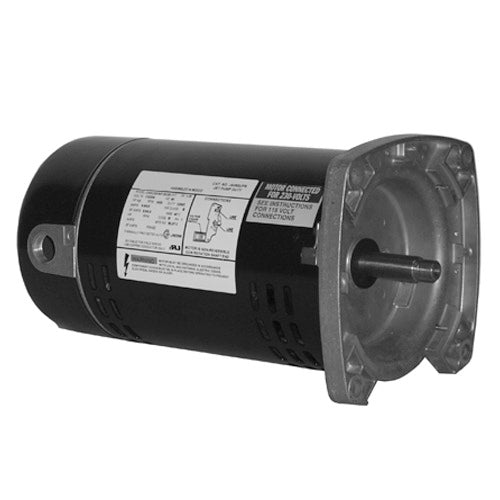

US-Nidec JS0332-2 Jet Pump Motor 1/3 HP 115/230V 3600 RPM

Product Description

The US-Nidec JS0332-2 Jet Pump Motor is a reliable solution for various pumping applications. This motor is designed with cap start electrical type, providing efficient performance with a power rating of 1/3 HP. It operates at 3600 RPM, making it suitable for demanding tasks.

• 1/3 HP power rating
• 3600 RPM speed
• 115/230 volts operation

Product Highlights

The US-Nidec JS0332-2 is built from rolled steel and includes ball bearings for durability. Its single-phase operation and square flange mounting ensure easy installation. The motor's automatic overload protection adds an extra layer of safety, and its open drip-proof (ODP) enclosure offers robust performance in various environments.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: JS0332-2

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 1/3 HP
• RPM: 3600
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/230
• Rotation: CCWSE
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: Square Flange
• Shaft Type: Single
• Insulation Class: B
• Service Factor: 1.95
• Frame Size: 48
• Frame Suffix: Y
