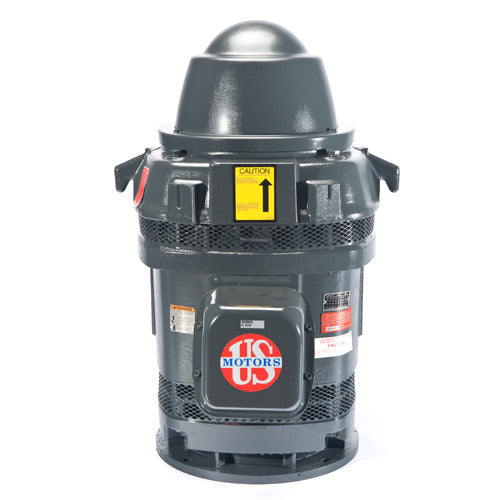

US-Nidec HO75P2BLG Vertical Hollow Shaft Motor 75HP 230/460V Replacement MPN

Product Description

The US-Nidec HO75P2BLG Vertical Hollow Shaft Motor is a robust motor designed for industrial applications. This motor provides reliable performance for turbine, mix flow, and propeller pumps.

• Three-phase motor with 75 HP output
• Weather Protected Type I (WPI) enclosure
• Optimized for SINEWAVE operation

Product Highlights

The motor features a 365TP frame and operates at 230/460 volts. It has a base diameter of 16.5 inches and a coupling height of 31-5/32 inches. The motor is designed to handle high thrust loads of up to 5700 lbs and is suitable for various industrial applications.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: HO75P2BLG

Technical Specifications

• Electrical Type: Three Phase
• HP: 75
• Frame: 365TP
• Enclosure: WPI
• Voltage: 230/460
• Phase: Three
• Down Thrust: 5700 lbs
• Base Diameter: 16.5 inches
• Coupling Height: 31-5/32 inches
• Coupling Bore Size: 1-1/4 inches
• Coupling Keyway: 1/4 inches
• Ambient Temperature: 40°C
• Efficiency: 95%
• Insulation Class: F
• Service Factor: 1.15
