US-Nidec HO50P2BLF Vertical Hollow Shaft Motor 50 HP 230/460V

Product Description

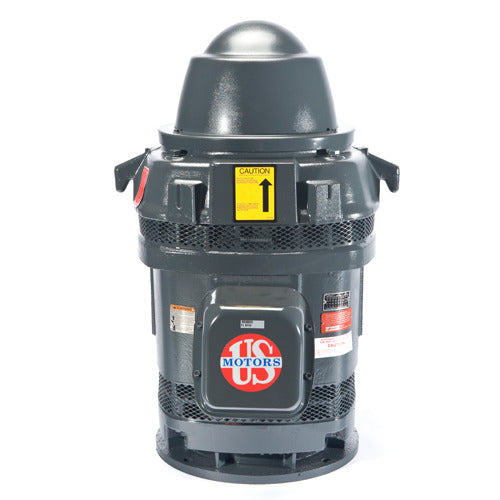

The US-Nidec HO50P2BLF Vertical Hollow Shaft Motor is a three-phase motor designed for high thrust applications. It features a 50 HP output and a voltage range of 230/460V. This motor is optimized for premium efficiency and includes a weather-protected Type I (WPI) enclosure.

• 50 HP output
• 230/460V voltage range
• Weather-protected Type I (WPI) enclosure

Product Highlights

Suitable for turbine, mix flow, and propeller pumps applications.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: HO50P2BLF

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 50
• Frame: 326TPH
• Enclosure: WPI
• Phase: Three
• Voltage: 230/460
• Ambient Temperature: 40°C
• Efficiency: 94.5
• Insulation Class: F
• Service Factor: 1.15
• Vertical Shaft Type: RUS
• Down Thrust: 5700 LBS
• Base Diameter: 12 inches
• Coupling Height: 28-7/32 inches
• Coupling Bore Size: 1.25 inches
• Coupling Keyway: 1/4 inch
• Weight: 675.67 LBS
