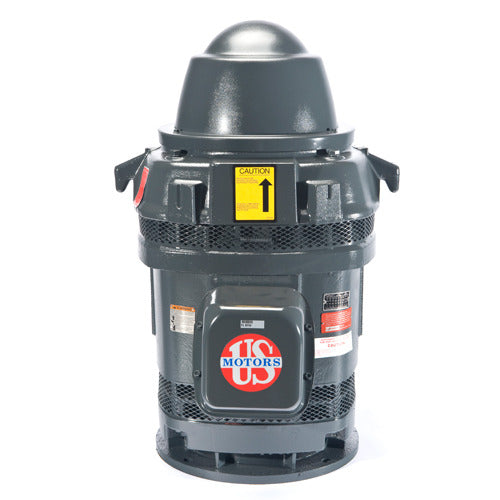

US-Nidec HO30P2BLG Vertical Hollow Shaft Motor 30 HP 230/460V

Product Description

The US-Nidec HO30P2BLG Vertical Hollow Shaft Motor offers a robust solution for vertical pump applications. With a 30 HP three-phase power and WPI (Weather Protected Type I) enclosure, this motor delivers reliable performance in various weather conditions. It is optimized for sinewave operations, ensuring premium efficiency.

• High thrust motor with 3300 lbs down thrust
• Weather Protected Type I (WPI)
• SINEWAVE optimized for premium efficiency

Product Highlights

This US-Nidec motor is ideal for turbine, mix flow, and propeller pumps, providing high thrust and efficient operation under demanding conditions.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: HO30P2BLG

Technical Specifications

• Electrical Type: Three Phase
• HP: 30
• Frame: 286TPH
• Enclosure: WPI
• Phase: Three
• Voltage: 230/460
• Type: AUS
• Down Thrust: 3300 lbs
• Base Diameter: 16.5 inches
• Coupling Height: 24.75 inches
• Coupling Bore Size: 1 inch
• Coupling Keyway: 0.25 inch
• Ambient Temperature: 40°C
• Efficiency: 94.1%
• Insulation Class: F
• Service Factor: 1.15
