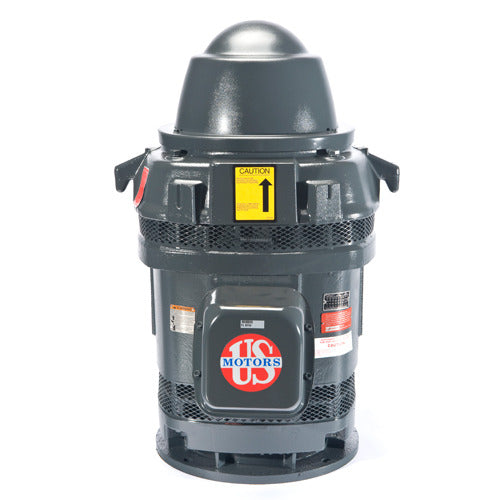

US-Nidec HO30P2BLF Vertical Hollow Shaft Motor 30 HP 230/460 V

Product Description

The US-Nidec HO30P2BLF Vertical Hollow Shaft Motor is engineered for vertical applications. It is a three-phase motor designed to deliver 30 horsepower, making it ideal for demanding environments. This motor runs on 230/460 volts and is weather protected with a WPI enclosure.

• 30 HP three-phase motor
• Operates at 230/460 volts
• Weather Protected Type I (WPI) enclosure

Product Highlights

This motor is optimized for sinewave operations and features a premium efficiency design. Use it in turbine, mix flow, and propeller pumps for reliable performance.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: HO30P2BLF

Technical Specifications

• Electrical Type: Three Phase
• HP: 30
• Frame: 286TPA
• Enclosure: WPI
• Phase: Three
• Voltage: 230/460
• Ambient Temperature: 40°C
• Efficiency: 94.1
• Insulation Class: F
• Service Factor: 1.15
• Vertical Hollow Shaft Type: AUS
• Down Thrust: 3300 lbs
• Base Diameter: 12 inches
• Coupling Height: 24.75 inches
• Coupling Bore Size: 1 inch
• Coupling Keyway: 0.25 inch
