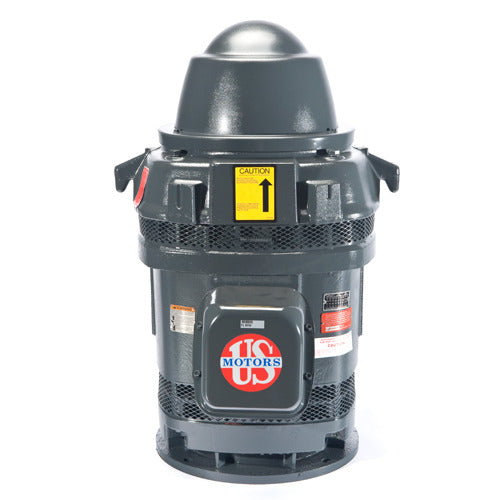

US-Nidec HO25P2BLF Vertical Hollow Shaft Motor 25HP WPI

Product Description

The US-Nidec HO25P2BLF is a vertical hollow shaft motor designed for high thrust applications. It features a powerful 25 horsepower three-phase motor, making it ideal for use on turbine, mix flow, and propeller pumps.

• Premium efficiency and weather-protected
• Sinewave optimized for better performance
• Compatible with various pumps

Product Highlights

Weather Protected Type I (WPI) design ensures durability. Premium efficiency reduces energy consumption. Sinewave optimization enhances performance.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: HO25P2BLF
• Type: Vertical Hollow Shaft Motor

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 25
• Frame: 284TPA
• Enclosure: WPI
• Phase: Three
• Voltage: 230/460
• Down Thrust: 3300 lbs
• Base Diameter: 12 inches
• Coupling Height: 24.75 inches
• Coupling Bore Size: 1 inch
• Coupling Keyway: 0.25 inches
• Ambient Temperature: 40°C
• Efficiency: 93.6
• Insulation Class: F
• Service Factor: 1.15
• Vertical Hollow Shaft Type: AUS
