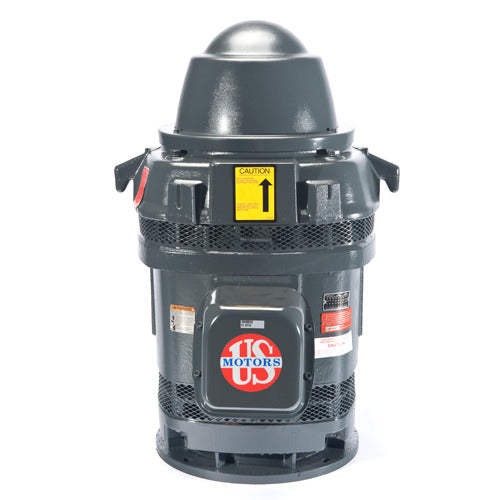

US-Nidec HO20P2BLF Vertical Hollow Shaft Motor 20HP 230/460V

Product Description

The US-Nidec HO20P2BLF Vertical Hollow Shaft Motor provides a reliable solution for high thrust applications. This three-phase motor delivers 20 horsepower and operates at 230/460 volts. It is equipped with a 256TPH frame and features a weather-protected enclosure for durable performance.

• Powered by 20 horsepower
• Vertical Hollow Shaft design
• Three-phase motor

Product Highlights

Ideal for turbine, mix flow, and propeller pumps, this motor supports high thrust with optimal efficiency. It is sinewave optimized and weather-protected, making it suitable for various demanding environments. Ensure high performance and reliability with this premium motor.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: HO20P2BLF

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 20 HP
• Frame: 256TPH
• Enclosure: WPI
• Voltage: 230/460
• Down Thrust: 3300 LBS
• Base Diameter: 12 inches
• Coupling Height: 24.75 inches
• Coupling Bore Size: 1 inch
• Coupling Keyway: 1/4 inch
• Efficiency: 93%
• Ambient Temperature: 40°C
• Service Factor: 1.15
• Insulation Class: F
• Vertical Hollow Shaft Type: AUS
