Description

Product Description

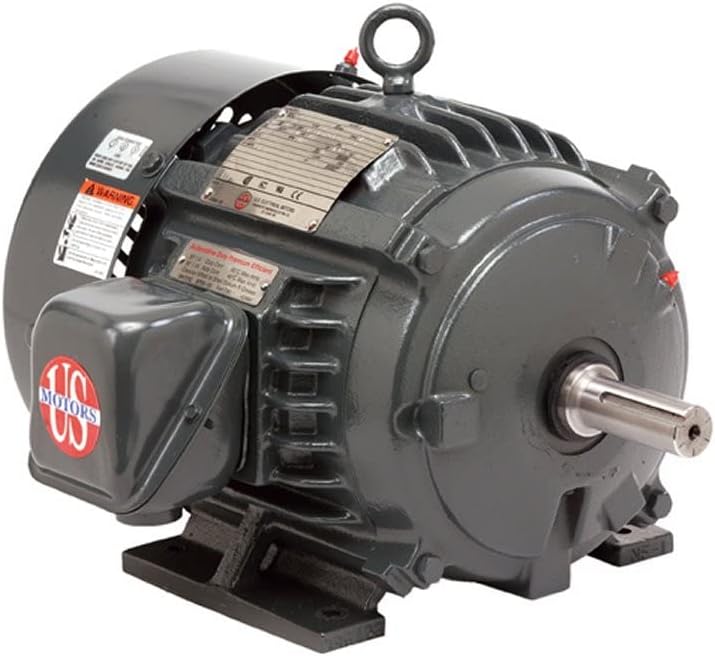

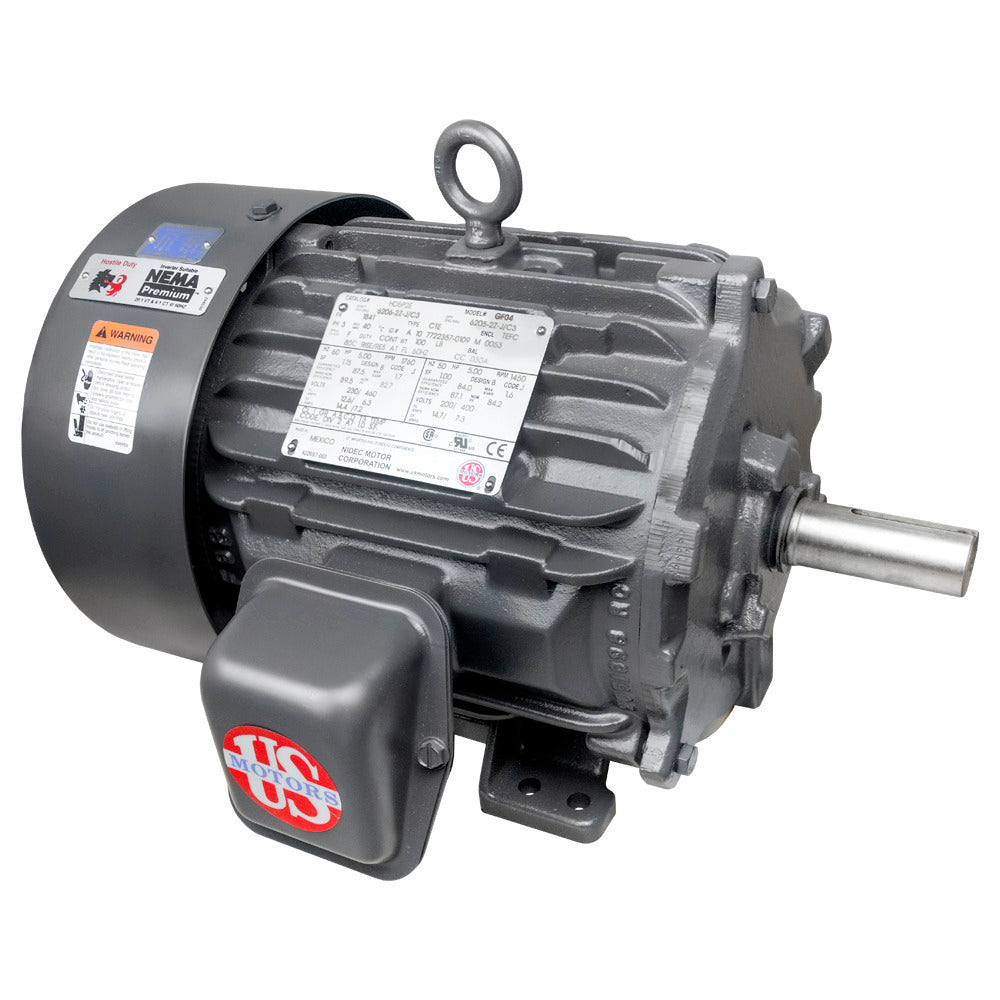

The Nidec HD7P2E is a 7.5 horsepower electric motor designed for demanding applications. This motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, providing reliable protection from dust and moisture. It operates at 1800 RPM and is versatile with its 230/460 volts capability.

  • 7.5 horsepower motor
  • 213T frame size
  • Three-phase power

Product Highlights

Ideal for use in industrial applications such as manufacturing and material handling industries, offering durability and efficiency.

Product Information

Standard Information

  • Brand: Nidec
  • Model: HD7P2E

Technical Specifications

  • Power: 7.5 horsepower
  • Speed: 1800 RPM
  • Voltage: 230/460 volts

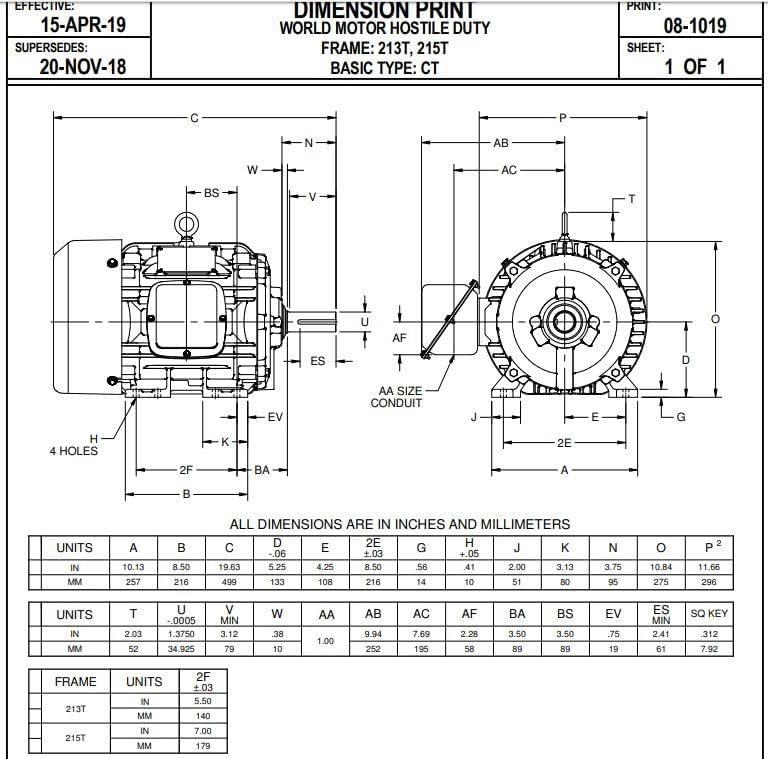

  • Frame Size: 213T
  • Phase: Three
  • Enclosure: TEFC
  • Material: Cast Iron
  • Amperage: 19.1/9.6
  • Mounting Type: Horizontal/Footed
  • Insulation Class: F
  • Service Factor: 1.15
