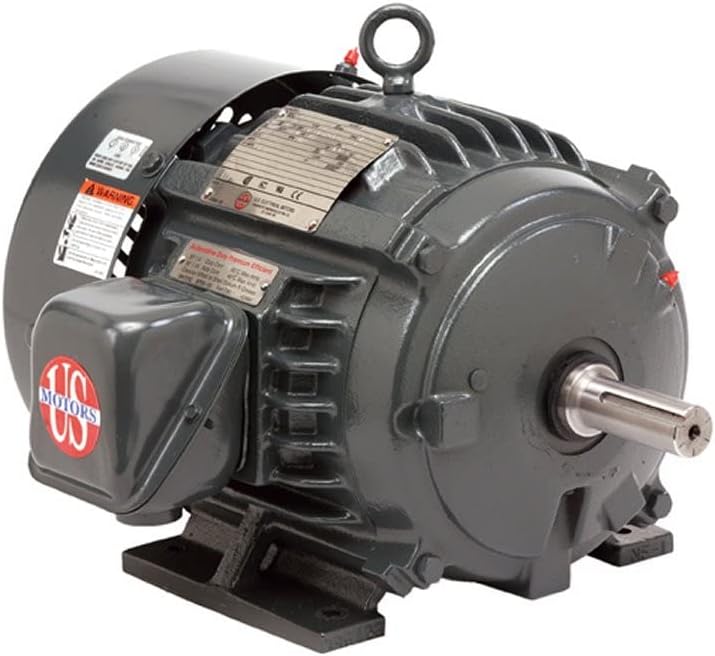

Nidec HD7P1E 7.5 hp 3600 RPM 213T Frame 208-230/460V TEFC

Product Description

The Nidec HD7P1E is a 7.5 horsepower electric motor that operates at 3600 revolutions per minute. It features a 213T frame design and runs on 208-230/460 volts. This TEFC (Totally Enclosed Fan Cooled) motor is suitable for various industrial applications.

• Suitable for hostile duty environments.
• Highly efficient with service factor of 1.15.
• Reversible operation with a rigid base mount for stability.

Product Highlights

This motor is ideal for use in pulp and paper plants, chemical plants, and other facilities requiring durable performance under harsh conditions.

Product Information

Standard Information

• Brand: Nidec
• MPN: HD7P1E

Technical Specifications

• Horsepower: 7.5 hp
• Speed: 3600 RPM

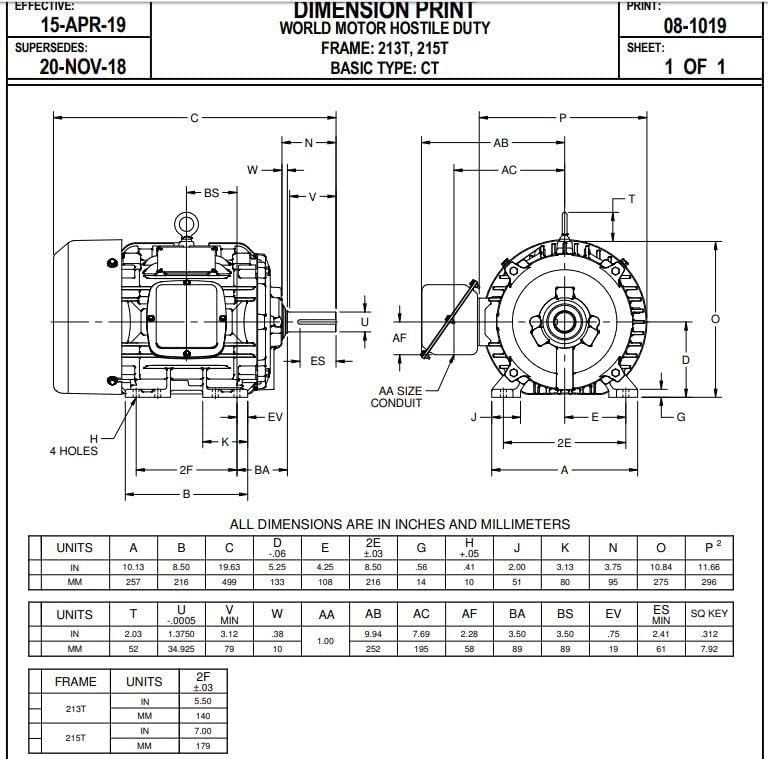

• Frame Size: 213T
• Voltage: 208-230/460 V
• Amperage: 18.1/9 A
• Phase: Three Phase
• Service Factor: 1.15
• Enclosure Type: TEFC
• Material: Cast Iron
• Mounting Type: Horizontal / Footed
• Insulation Class: F
