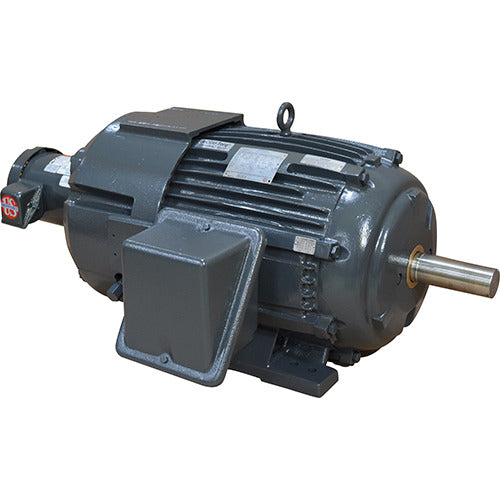

US-Nidec HD5V2BC Inverter Duty Motor 5HP 230/460V 184TC

Product Description

The US-Nidec HD5V2BC Inverter Duty Motor is a reliable solution for your motor needs. This three-phase motor features a power rating of 5 horsepower and operates at 230/460 volts. Its frame is 184TC, providing a sturdy construction for various applications. The motor's enclosure is totally enclosed fan-cooled (TEFC), ensuring optimal performance in different environments.

• Three-phase motor
• 5 horsepower power rating
• 230/460 volts operation

Product Highlights

The US-Nidec HD5V2BC motor is ideal for demanding applications. It features a single shaft type and C-Face / Footed mounting. Designed with durable cast iron material, this motor ensures long-lasting performance.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: HD5V2BC
• Product Type: Inverter Duty Motor

Technical Specifications

• Electrical Type: Three Phase
• HP: 5
• Frame: 184TC
• Enclosure: TEFC
• Phase: Three
• Voltage: 230/460
• Rotation: REV
• Material: Cast Iron
• Bearings Type: Ball / Ball
• Bearings Size: 6205-2Z-J/C3 / 6206-2Z-J/C3
• Mounting: C-Face / Footed
• Shaft Type: Single
• Efficiency: 89.50%
• Insulation Class: F
• Service Factor: 1.15
