Nidec HD5P3E 5 hp 1200 RPM 215T Frame 208-230/460V TEFC Electric Motor

Product Description

The Nidec HD5P3E is a 5 hp electric motor designed for demanding applications. This motor operates at 1200 RPM and is built with a 215T frame. It supports 208-230/460 volts, making it suitable for various industrial environments.

• 5 hp power output
• 1200 RPM speed

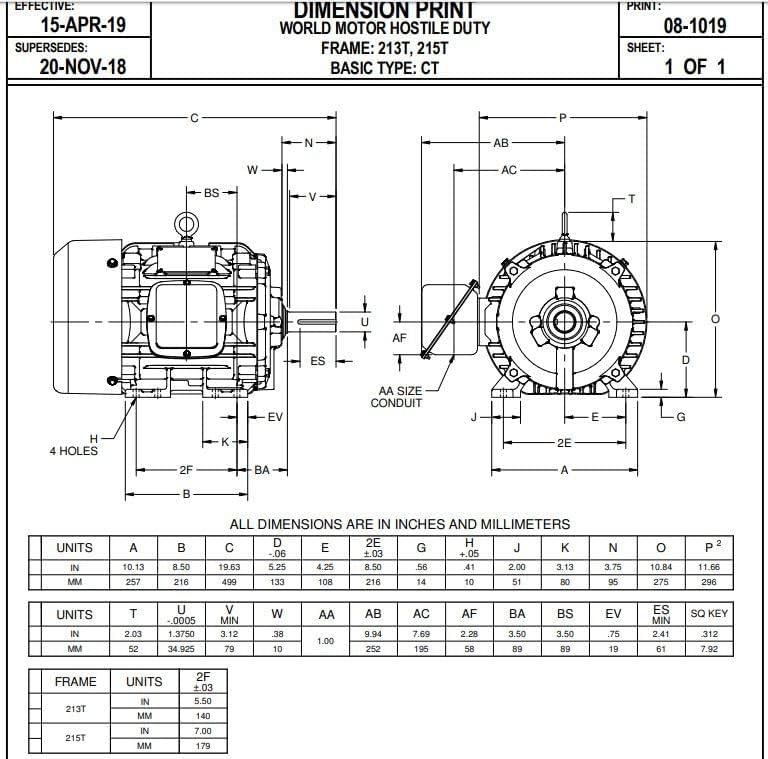

• 215T frame

Product Highlights

This motor is ideal for use in pulp and paper plants, saw mills, mines, and chemical plants. It features a totally enclosed fan-cooled (TEFC) design, ensuring protection in harsh conditions. The motor is suitable for 20:1 variable torque and 5:1 constant torque on inverter power.

Product Information

Standard Information

• Brand: Nidec
• MPN: HD5P3E

Technical Specifications

• Horsepower: 5 hp
• Speed: 1200 RPM
• Frame: 215T
• Voltage: 208-230/460V
• Amperage: 14.2/7.1 amps
• Phase: Three
• Enclosure: TEFC
• Material: Cast Iron
• Service Factor: 1.15
• Insulation Class: F
