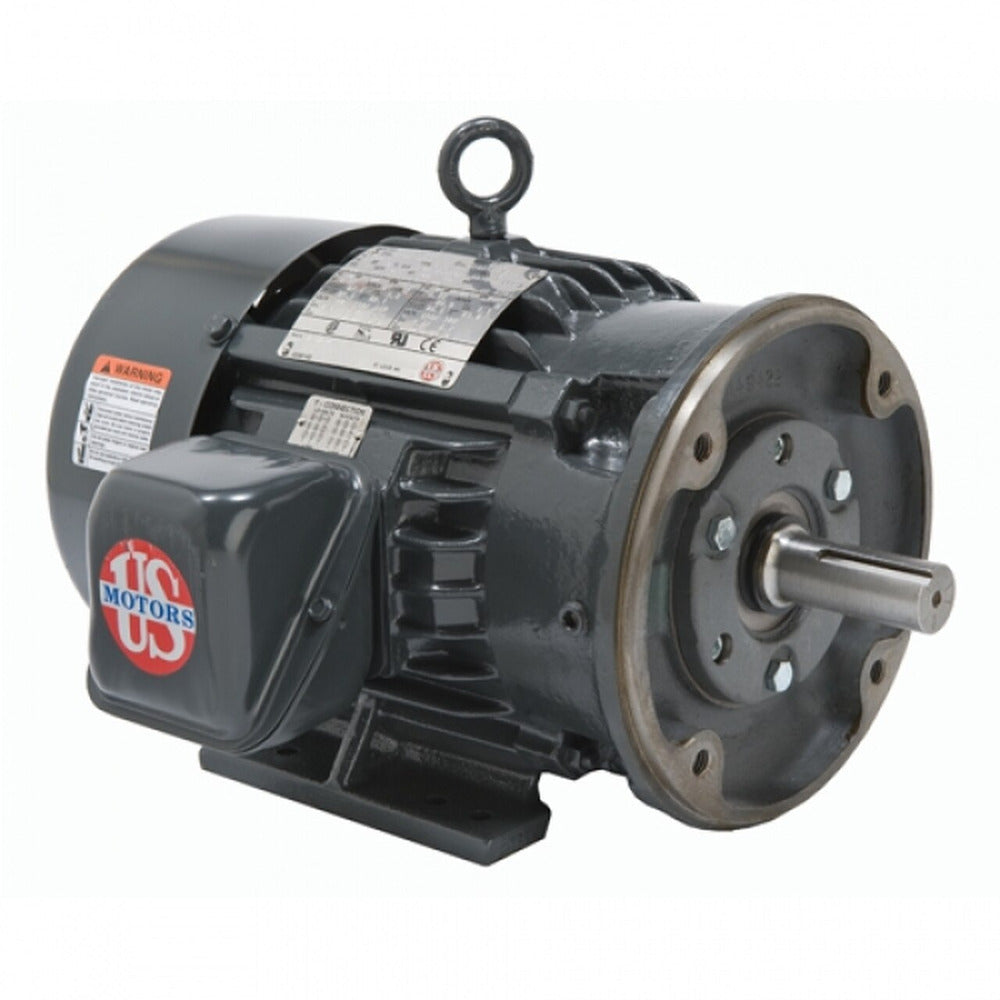

Nidec Motor Corporation HD5P2EC N , 5 hp 1800 RPM 184TC Frame 230/460V TEFC N Electric Motor

SKU / MPN:
HD5P2EC
SKU / MPN: HD5P2EC

$547.43

In Stock - Ships via Freight in 3-5 Business Days

Buy a system bundle and save up to 10%!

SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED

Secure
Ordering

Easy
Returns

100% Fit
Guarantee

Expert
Advice

Fast
Shipping

HAVE A QUESTION? Our friendly team is ready to help!

Product Information

Applications:
For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiring protection within harsh operating conditions.

Features:
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Corrosion Resistant Mill & Chemical Duty Paint
Cast Iron Frame, Cast Iron End Brackets
Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
Shaft Slinger On Pulley End For IP54 Protection
40C Ambient, NEMA Design B Performance On 60 Hz Sine Wave Power
Torque On Regreasable Ball Bearings 250 Frame & Up, Lifting Provisions
Self-Certified Class I, Division 2, Groups A, B, C, & D Double Shielded Bearings 140-360, Open on 400-440
Steel Fan Cover & Conduit Box 1.15 Service Factor @ 60 Hz Field Convertible To F2 Mounting
Condensation Drains With Plastic Plugs
Conversion Kits: All Cast Iron Upgrade, C&D Flanges, Canopy Kits
Suitable for 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power

Specifications:
5 hp 1800 RPM, 12.7/6.3 amps 230/460 Volts Three Phase Motor
NEMA 184TC frame, Keyed Shaft 1 1/8 Diameter x 2 5/8
Service Factor: 1.15 - overload protection = None
Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
C Dimension = 17.06

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty. 40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
