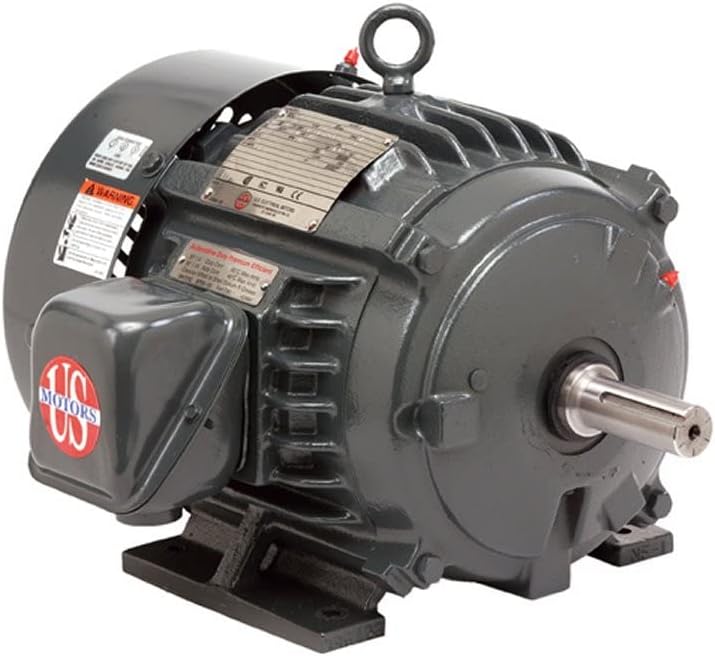

Nidec HD3P3E 3 hp 1200 RPM 213T Frame 208-230/460V TEFC Electric Motor

Product Description

The Nidec HD3P3E electric motor is a 3 hp, 1200 RPM motor designed for tough conditions. Its robust construction includes a cast iron frame and totally enclosed fan-cooled (TEFC) build, making it suitable for harsh environments.

• 3 hp, 1200 RPM, 208-230/460V three-phase motor
• NEMA 213T frame with keyed shaft
• TEFC construction with 1.15 service factor

Product Highlights

This Nidec motor is ideal for use in industries like pulp and paper, saw mills, mines, foundries, chemical plants, and waste management facilities. It features a keyed shaft for secure mounting and reversible horizontal/footed mounting.

Product Information

Standard Information

• Brand: Nidec
• MPN: HD3P3E

Technical Specifications

• Horsepower: 3 hp
• RPM: 1200

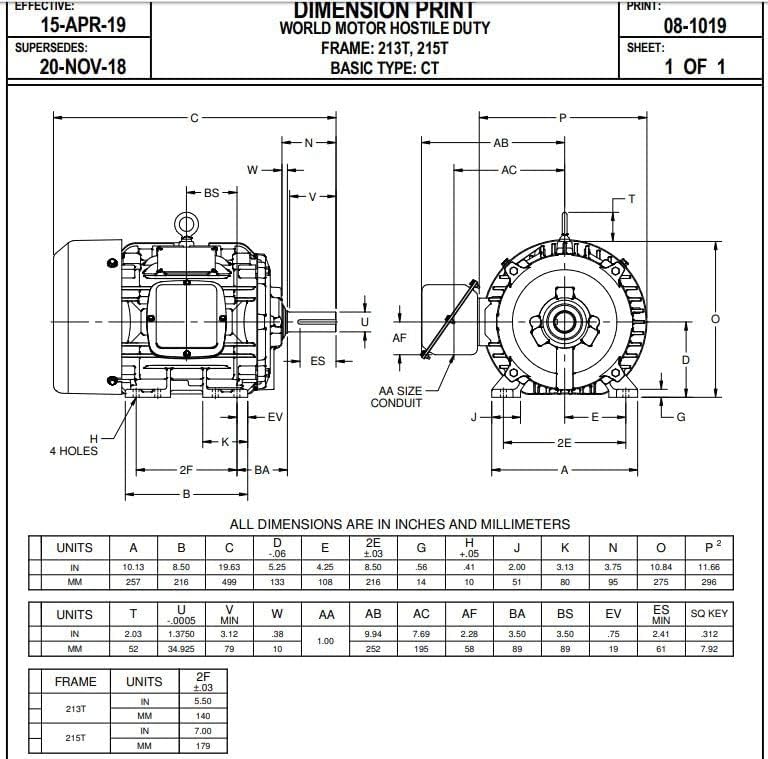

• Frame: 213T
• Voltage: 208-230/460V
• Phase: Three
• Enclosure: TEFC
• Service Factor: 1.15
• Material: Cast Iron
• Bearing Type: Ball
