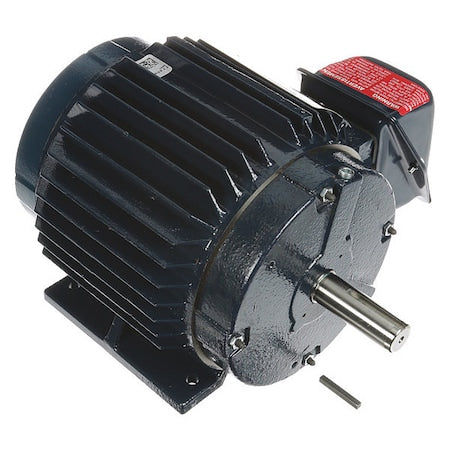

US-Nidec HD2P2H General Purpose Motor 2 HP 200V 145T

Product Description

The US-Nidec HD2P2H General Purpose Motor is a robust solution for industrial applications. This 2 HP motor is designed for use in harsh conditions, such as pulp and paper plants, saw mills, mines, and chemical plants.

• 2 HP power output
• 200 volts, 145T frame
• Suitable for a variety of industrial settings

Product Highlights

This motor offers efficient performance and durability. It features a cast iron frame and a totally enclosed fan-cooled design. It is rated for continuous duty and operates at 1800 RPM.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: HD2P2H
• Motor Type: General Purpose

Technical Specifications

• HP: 2
• RPM: 1800
• Voltage: 200V
• Frame: 145T
• Amperage: 6.2/6.1
• Phase: Three
• Enclosure: TEFC
• Material: Cast Iron
• Bearing Type: Ball
• Bearing Size: 6203-2Z-J/C3 / 6205-2Z-J/C3
• Mounting Type: Horizontal / Footed
• Shaft Type: Single
• Service Factor: 1.15
• Insulation Class: F
• Efficiency: 86.50%
