Nidec HD2P1E 2 HP 3600 RPM 145T Frame Electric Motor

Product Description

The Nidec HD2P1E 2 HP Electric Motor is designed for demanding environments. With a robust 145T frame and operating at 3600 RPM, it is ideal for various industrial applications including saw mills and chemical plants.

• 2 HP output at 3600 RPM
• 145T frame with TEFC enclosure
• 230/460 Volt, three-phase motor

Product Highlights

This Nidec electric motor features a keyed shaft, is reversible, and provides reliable operation with a service factor of 1.15. It is engineered for continuous duty in environments where protection against moisture and debris is critical.

Product Information

Standard Information

• Brand: Nidec
• MPN: HD2P1E
• Weight: 50 pounds
• Dimensions: 19 inches (Length), 14 inches (Width), 13 inches (Height)

Technical Specifications

• Horsepower: 2 HP
• Speed: 3600 RPM

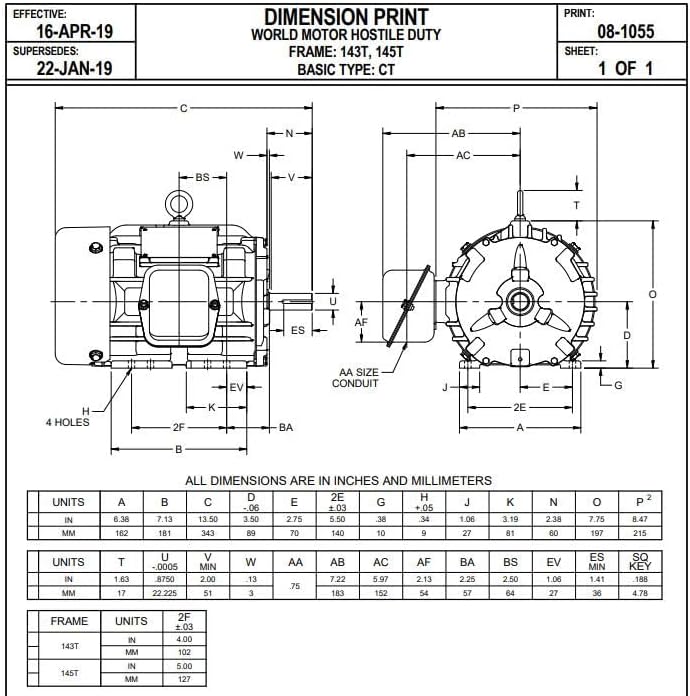

• Frame: 145T
• Voltage: 230/460 Volts
• Phase: Three
• Amperage: 5/2.5 amps
• Enclosure: TEFC
• Material: Cast Iron
• Service Factor: 1.15
• Efficiency: 85.50%
• Mounting Type: Horizontal / Footed
• Rotation: REV
• Bearings Type: Ball
• Duty: Hostile Duty
• Insulation Class: F
